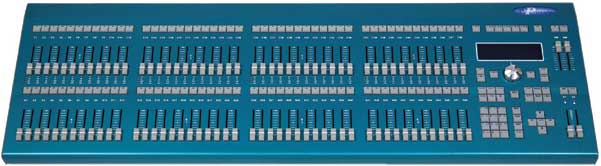

Leviton PPIC0-V48
192-Channel Piccolo Lighting Console (with VGA Video Option, Power Supply & Dust Cover)

OUR PART #:  PPIC0-V48

NOTE: In lieu of an available picture of the PPIC0-V48's back panel, the 12/48 version's back panel is shown above in order to display similar features.
Learn More
Our Price: $5,429.16
List Price: $5,940.00
You save 9%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Leviton PPIC0-V48
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

NOTE: In lieu of an available picture of the PPIC0-V48's back panel, the 12/48 version's back panel is shown above in order to display similar features.

PPIC0-V48: Piccolo 48/192 with support for 48 channels and 32 attributes. Includes factory installed VGA video option.

NSI's Piccolo line of lighting controllers offer features and functionality not commonly found in a console of this size.  While it functions easily as a standard manual/memory board with traditional channel capacities, Piccolo also offers features previously unavailable in products in this category.

Leviton PPIC0-V48 Piccolo Lighting Console Features:

  • 192 Channels
  • 48 Sub masters
  • 96 handles
  • 10 sub master pages (ssigned to submaster/Group, cue, effect)
  • 32 Attributes channels for automated devices
  • 512 DMX channels
  • 10,000 Cues (0.0-999.9)
  • 99 Effects
  • Unlimited max shows
  • 1 DMX output
  • 1 DMX input
  • Weight: 16.5 lbs (7.5 kg)
  • Proportional softpatch to all 512 DMX
  • Full access to all channels via faders: Match & Take Control withaudible visual indication of match
  • Off Line Editor

Leviton PPIC0-V48 Piccolo Lighting Console Specifications:

Operating Modes:

  • Two Scene Operating Mode - traditional two-scene mode, autofase becomescross fader
  • Single Scene Operating Mode - all faders are channel faders, autofaderbecomes cue list
  • Submaster "Theater" Operating Mode - 1/2 faders arechannel faders, the other 1/2 are dedicated Submasters, autofader becomes cuelist

User Interface:

  • Channel Faders
  • Keypad
  • Display (240x64)
  • Attribute Encoder/Data Entry Wheel
  • Audio-fader with go, pause, back and rate controls
  • Multi-Purpose Fader (Effect master & DMX input master)
  • Grand Mster & Blackout Key
  • Channel Flash and Master Flash. Master Flash can be configured indifferent modes (GO, FLASH, SOLO)
  • Arrow Keys
  • Soft Keys

Cue Attributes:

  • Fade Up
  • Fade Down
  • Delay Up
  • Delay Down
  • Wait
  • Follow
  • Jump
  • Loop

Effects:

  • No practical limit on number of steps
  • Cues, Groups, Channels
  • Level
  • Speed
  • Ramp
  • Direction
  • Mode
  • Base Cue

LED Indicators:

  • 1 per channel to show channel level
  • Console "Mode" Indication
  • Accessible Channel ranges

I/O Ports:

  • DMX Output
  • DMX Input
  • Ethernet - 10/100-Base-T
  • USB Host (connect to PC)
  • USB Device (connect to USB Memory Stick or external hard drive)
  • Worklight
  • Midi In/Out
  • LT-Link
  • VGA Output (Optional)

Software Features:

  • Hardware Test
  • Exam
  • Modify
  • Spreadsheet style list navigation
    - Cues
    - Groups
    - Effects
  • Text Labeling of any consoles item
  • 5 dimmers curves
  • Personalities
  • Multi-language
  • For use with or without external vga
  • Print show data to text file
