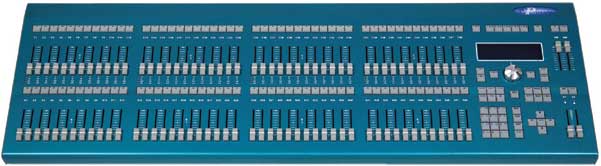

Leviton PPIC0-048
192-Channel Piccolo Lighting Console (with Power Supply & Dust Cover)

OUR PART #:  PPIC0-048

NOTE: In lieu of an available picture of the PPIC0-048's back panel, the 12/48 version's back panel is shown above in order to display similar features.
Learn More
Our Price: $4,901.30
List Price: $5,362.47
You save 9%!
Write the first review.
Leviton PPIC0-048
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

NOTE: In lieu of an available picture of the PPIC0-048's back panel, the 12/48 version's back panel is shown above in order to display similar features.

PPIC0-048: Piccolo 48/192 with support for 48 channels and 32 attributes.

NSI's Piccolo line of lighting controllers offer features and functionality not commonly found in a console of this size.  While it functions easily as a standard manual/memory board with traditional channel capacities, Piccolo also offers features previously unavailable in products in this category.

Leviton PPIC0-048 Piccolo Lighting Console Features:

  • 192 Channels
  • 48 Sub masters
  • 96 handles
  • 10 sub master pages (ssigned to submaster/Group, cue, effect)
  • 32 Attributes channels for automated devices
  • 512 DMX channels
  • 10,000 Cues (0.0-999.9)
  • 99 Effects
  • Unlimited max shows
  • 1 DMX output
  • 1 DMX input
  • Weight: 16.5 lbs. (7.5 kg)
  • Proportional softpatch to all 512 DMX
  • Full access to all channels via faders: Match & Take Control withaudible visual indication of match
  • Off Line Editor

Leviton PPIC0-048 Piccolo Lighting Console Specifications:

Operating Modes:

  • Two Scene Operating Mode - traditional two-scene mode, autofase becomescross fader
  • Single Scene Operating Mode - all faders are channel faders, autofaderbecomes cue list
  • Submaster "Theater" Operating Mode - 1/2 faders arechannel faders, the other 1/2 are dedicated Submasters, autofader becomes cuelist

User Interface:

  • Channel Faders
  • Keypad
  • Display (240x64)
  • Attribute Encoder/Data Entry Wheel
  • Audio-fader with go, pause, back and rate controls
  • Multi-Purpose Fader (Effect master & DMX input master)
  • Grand Mster & Blackout Key
  • Channel Flash and Master Flash. Master Flash can be configured indifferent modes (GO, FLASH, SOLO)
  • Arrow Keys
  • Soft Keys

Cue Attributes:

  • Fade Up
  • Fade Down
  • Delay Up
  • Delay Down
  • Wait
  • Follow
  • Jump
  • Loop


  • No practical limit on number of steps
  • Cues, Groups, Channels
  • Level
  • Speed
  • Ramp
  • Direction
  • Mode
  • Base Cue

LED Indicators:

  • 1 per channel to show channel level
  • Console "Mode" Indication
  • Accessible Channel ranges

I/O Ports:

  • DMX Output
  • DMX Input
  • Ethernet - 10/100-Base-T
  • USB Host (connect to PC)
  • USB Device (connect to USB Memory Stick or external hard drive)
  • Worklight
  • Midi In/Out
  • LT-Link
  • VGA Output (Optional)

Software Features:

  • Hardware Test
  • Exam
  • Modify
  • Spreadsheet style list navigation
    - Cues
    - Groups
    - Effects
  • Text Labeling of any consoles item
  • 5 dimmers curves
  • Personalities
  • Multi-language
  • For use with or without external vga
  • Print show data to text file
