Leviton PPIC0-V24 96-Channel Piccolo Lighting Console (with VGA Video Option, Power Supply & Dust Cover)

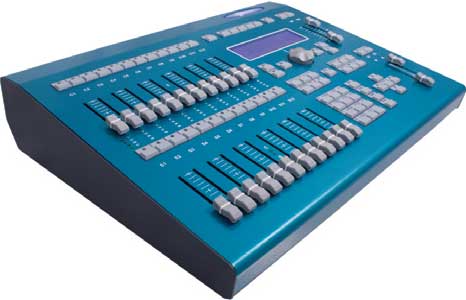

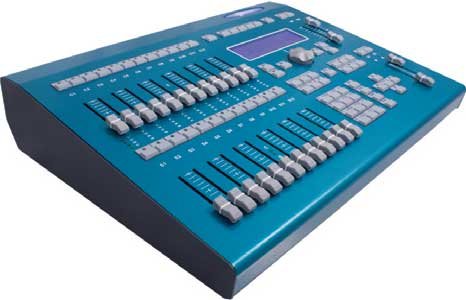

NOTE: In lieu of an available picture of the PPIC0-V24, the 12/48 version of the console is shown above in order to display similar features.

PPIC0-V24: Piccolo 24/96 with support for 48 channels and 32 attributes. Includes factory installed VGA video option.

NSI's Piccolo line of lighting controllers offer features and functionality not commonly found in a console of this size. While it functions easily as a standard manual/memory board with traditional channel capacities, Piccolo also offers features previously unavailable in products in this category.

Leviton PPIC0-V24 Lighting Console Features:

• 96 Channels
• 24 Sub masters
• 48 handles
• 10 sub master pages (ssigned to submaster/Group, cue, effect)
• 32 Attributes channels for automated devices
• 512 DMX channels
• 10,000 Cues (0.0-999.9)
• 99 Effects
• Unlimited max shows
• 1 DMX output
• 1 DMX input
• Weight: 11 lbs (5 kg)
• Proportional softpatch to all 512 DMX
• Full access to all channels via faders: Match & Take Control withaudible visual indication of match
• Off Line Editor

Software Features:

• Hardware Test
• Exam
• Modify
• Spreadsheet style list navigation
  • Cues
  • Groups
  • Effects
• Text Labeling of any consoles item
• 5 dimmers curves
• Personalities
• Multi-language
• For use with or without external vga
• Print show data to text file

Leviton PPIC0-V24 Lighting Console Specifications:

• Operating Modes:
  • Two Scene Operating Mode - traditional two-scene mode, autofase becomescross fader
  • Single Scene Operating Mode - all faders are channel faders, autofaderbecomes cue list
  • Submaster "Theater" Operating Mode
• User Interface:
  • Channel Faders
  • Keypad
  • Display (240x64)
  • Attribute Encoder/Data Entry Wheel
  • Audio-fader with go, pause, back and rate controls
  • Multi-Purpose Fader (Effect master & DMX input master)
  • Grand Mster & Blackout Key
  • Channel Flash and Master Flash. Master Flash can be configured indifferent modes (GO, FLASH, SOLO)
  • Arrow Keys
  • Soft Keys
• Cue Attributes:
  • Fade Up
  • Fade Down
  • Delay Up
  • Delay Down
  • Wait
  • Follow
  • Jump
  • Loop
• Effects:
  • No practical limit on number of steps
  • Cues, Groups, Channels
  • Level
  • Speed
  • Ramp
  • Direction
  • Mode
  • Base Cue
• LED Indicators:
  • 1 per channel to show channel level
  • Console "Mode" Indication
  • Accessible Channel ranges
• I/O Ports:
  • DMX Output
  • DMX Input
  • Ethernet - 10/100-Base-T
  • USB Host (connect to PC)
  • USB Device (connect to USB Memory Stick or external hard drive)
  • Worklight
  • Midi In/Out
  • LT-Link
  • VGA Output (Optional)
