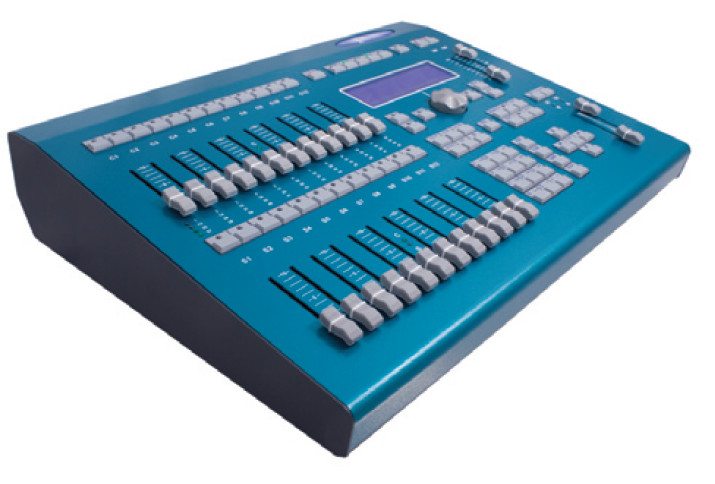

Leviton PPIC0-V12
Piccolo 48 Channel Console with Video Option


PPICO-012: Piccolo 12/48 with support for 48 channels and 32 attributes with VGA video.
Learn More
Our Price: $3,528.95
List Price: $3,861.00
You save 9%!
Write the first review.
Leviton PPIC0-V12
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

PPICO-012: Piccolo 12/48 with support for 48 channels and 32 attributes with VGA video.

Leviton's Piccolo line of lighting controllers offer features and functionality not commonly found in a console of this size.  Whilte it functions easily as a standard manual/memory board with traditional channel capacities, Piccolo also offers features previously unavailable in products in this category.


  • 32 Attributes channels for automated devices
  • Proportional softpatch to all 512 DMX
  • Two Scene Operating Mode - traditional two-scene mode, autofase becomes cross fader
  • Single Scene Operating Mode - all faders are channel faders, autofader becomes cue list
  • Submaster "Theater" Operating Mode - 1/2 faders are channel faders, the other 1/2 are dedicated Submasters, autofader becomes cue list

User Interface:

  • Channel Faders
  • Keypad
  • Display (240x64)
  • Attribute Encoder/Data Entry Wheel
  • Audio-fader with go, pause, back and rate controls
  • Multi-Purpose Fader (Effect master & DMX input master)
  • Grand Mster & Blackout Key
  • Channel Flash and Master Flash. Master Flash can be configured in different modes (GO, FLASH, SOLO)
  • Arrow Keys
  • Soft Keys

I/O Ports:

  • DMX Output
  • DMX Input
  • Ethernet - 10/100-Base-T
  • USB Host (connect to PC)
  • USB Device (connect to USB Memory Stick or external hard drive)
  • Worklight
  • Midi In/Out
  • LT-Link
  • VGA Output (optional)

Model Specifications:

  • Channels: 48
  • Submaster: 12
  • Handles: 24
  • Sub-master Pages: 10
  • DMX Channels: 512
  • Effects: 99
