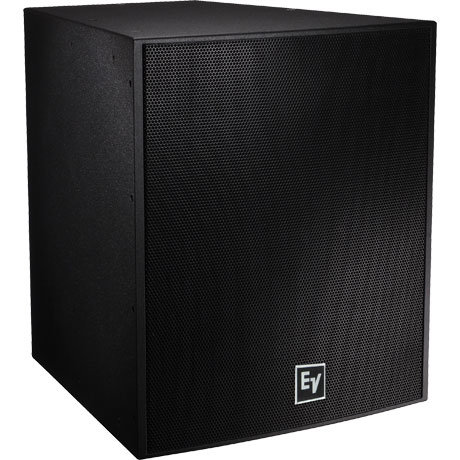

Electro-Voice EVF-1181S 18" 400W Passive Subwoofer, EVCoat Black

OUR PART #: EVF1181S-BLACK MFR #: F.01U.272.554

Copied to clipboard

The EVF-1181S single 18" subwoofer system is designed to work as a sub frequency reinforcement unit for EVF series products. ...Read more

Electro-Voice EVF-1181S 18" 400W Passive Subwoofer, EVCoat Black Image 1
Electro-Voice EVF-1181S 18" 400W Passive Subwoofer, EVCoat Black
Our Price: $1,626.78
List Price: $2,385.00
You save 32%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$46/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The EVF-1181S single 18" subwoofer system is designed to work as a sub frequency reinforcement unit for EVF series products. The EVF-1181S is built with the same footprint as the full range EVF models and its matched rigging points allow for perfect clustering in vertical and horizontal groupings.

Features:

  • Designed for House of Worship, Performance & Sports Venues, Stadium Systems, and other applications.
  • EVS18SB 18” (457 mm) LF Transducer
  • 99 dB sensitivity, 131 dB maximum SPL
  • System rating: 400 W continuous, 1600 W peak
  • (28) M10 threaded suspension points

Specifications:

  • Input Connections Phoenix/Euroblock style screw terminals
  • Frequency Response (-3 dB) 35 - 100 Hz
  • Frequency Response (-10 dB) 28 - 650 Hz
  • Internal Crossover No
  • Recommended High-Pass Frequency 33 Hz
  • Sensitivity 1 W/1 m 99 dB
  • Max. SPL/1m (calc); half space 131 dB
  • System Power Handling (Continuous/Program/Peak) 400 Watts
  • LF Transducer EVS18SB, 18 in (457mm) Driver
  • LF Nominal Impedance 8 O
  • Minimum Impedance 6 O
  • Enclosure Material 13 Ply Weather Resistant Birch
  • Grill 16 GA Galvanneal, Powdercoat, with Rotatable Logo
  • Suspension (28) M10 Threaded Points
  • Height 768.6 mm (30.26")
  • Width 675.6 mm (26.6")
  • Depth 726.4 mm (28.6")
  • Weight Net 46 kg (101.41 lbs
