Elation LSF559 10° Light Shaping Filter

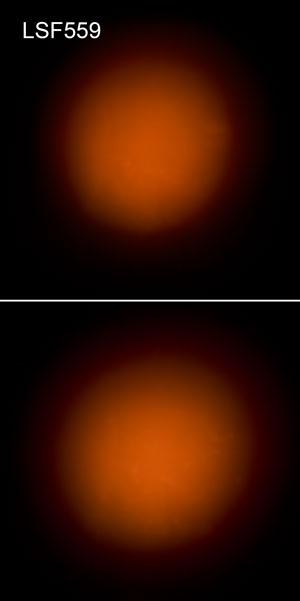

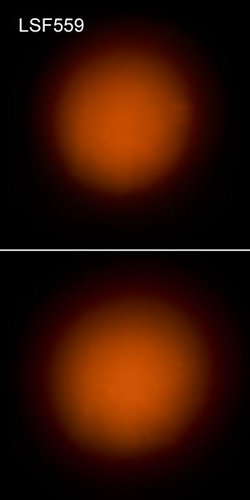

Elation Pro Lighting's LSF559 is part of their LSF Series of Light Shaping Filters that are easy-to-use polycarbonate sheets which can be cut to size to fit over virtually any LED fixture and transmit up to 92% of the light, shaping it to the desired effect you want. This particular product is the LSF10-24 sheet, measuring 24" x 24". With it, you can smoothen or widen out the pattern of any LED Panel or PAR fixture while also improving the field of color, or turn your LED Par can into a wall washer.

You can also increase your cost-effectiveness—if outfitting a 6" LED par can, for instance, 16 filters could be cut from a 20" x 24" sheet, making the per fixture cost very affordable.

Specifications

• 24" x 24" Polycarbonate sheet can be cut to fit over an LED fixture
• 10° Beam Angle
• Shape or Smooth LED Lighting
• Temperature Range: 30 °C to 100 °C @ 240 hrs or -40 °C to 500 °C
• Humidity: >95% ± 5% RH @ 24 hrs
• Transmission Efficiency:
  • Circular:
    • 0.2° to 20° = 90%
    • 20° to 80° = 85%
  • Elliptical: 85%
• Transmission: 400nm to 1600nm
• Spectral Range: 200nm to 1500nm
• Brightness Uniformity: 85%
