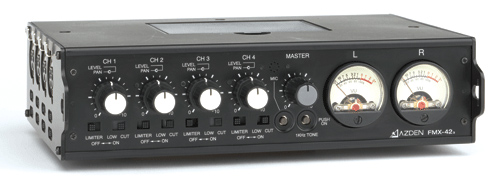

Azden FMX42A
4-Ch Portable Field Mixer

OUR PART #:  FMX42A

Having 4 balanced XLR line/mic inputs with individual level and pan controls, the FMX-42a provides switchable (per channel) 48V phantom power and limiting...
Learn More
Our Price: $549.00
List Price: $780.00
You save 30%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Azden FMX42A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Having 4 balanced XLR line/mic inputs with individual level and pan controls, the FMX-42a provides switchable (per channel) 48V phantom power and limiting, professional quality VU meters for accurate level setting, master level control, 1k tone generator, 2 balanced XLR outputs (line/mic switchable), stereo mini-jack output for DV cameras, 10-pin Camera Return, mini-jack Camera Return and a headphone monitor with level control.

The FMX-42a can be powered by either 6 internal "AA" batteries or an optional 12V DC external supply (Locking 4-Pin Hirose connector). A ballistic nylon carrying case is included.

Specifications:

General

  • Frequency Response:
      -  Balanced and Unbalanced Output: 20 Hz - 30 kHz (+0 / -1.5 dB)
      -  Monitor Out: 30 Hz - 30 kHz (+0 / -2 dB)
  • Signal-To-Noise: Balanced Output: -120 dBu (A weighted, Input Equivalent Level)
  • T.H.D. Balanced Output: <0.005% @ 1 kHz (@ LINE position +19 dBu output)
  • Phantom Power Voltage: 48V (± 4V)
  • Sample Tone Freq: 1 kHz

Power

  • Battery Requirement: 6 Alkaline “AA”
  • Battery Runtime: Approx. 9 hours (Meter Illum. & Phantom Power OFF)
  • External Power: 12VDC @ 200 mA (10.5-17VDC - Locking 4-Pin Hirose Connector)
  • Current Drain:
      -  164 mA (Meter Illum. & Phantom Power OFF - @ 9V)
      -  192 mA (Meter Illum. OFF/Phantom Power ON w/1 mic @ 9V)
      -  125mA (Meter Illum. & Phantom OFF @15V)

Physical

  • Dimensions:
      -  56H x 220W x 160D mm (without protrusions)
      -  2.25H x 9W x 6.5D inches (without protrusions)
  • Weight:
      -  1350 g (w/o batteries)
      -  3 lb (w/o batteries)

Input

  • Balanced Input: XLR 3-pin Female x 4 (CH1, 2, 3 and 4)
  • Level:
      -  Line Input:
          *  Standard : +4 dBu (electronically balanced)
          *  Maximum: > +26 dBu
      -  Mic 1:
          *  Standard: -38 dBu (electronically balanced)
          *  Maximum: +4 dBu
          *  Impedance: 2k ohm
      -  Mic 2:
          *  Standard:-58 dBu (electronically balanced)
          *  Maximum: -15 dBu
          *  Impedance: 2K ohm
  • High Pass Filter (HPF): 100 Hz – 6 dB/oct
  • Return Inputs:
      -  Hirose 10-pin Female for Hirose Part #RM15TD-10P
      -  3.5mm (1/8") Stereo Mini-jack
      -  Input Level: -20 dBu - +19 dBu (unbalanced)
      -  Impedance: 11k ohm

Output

  • Balanced Output:
      -  XLR 3-pin x 2 (Output L and R)
      -  Hirose 10-pin Female
  • Unbalanced Output: 3.5 mm (1/8") Stereo Mini-jack
  • Monitor Output: 6.3 mm (1/4") Stereo jack
  • Level:
      -  Electronically Balanced Output
          *  Standard: +4 dBu (> 10 k ohm load)
          *  Maximum: +20 dBu (>10 k ohm load)
          *  Impedance: 600 ohm
      -  Electronically Balanced Output
          *  Standard: -36 dBu (> 10 k ohm load)
          *  Maximum: -20 dBu (>10 k ohm load)
          *  Impedance: 600 ohm
      -  Unbalanced Output
          *  Standard:-36 dBu (> 10 k ohm load)
          *  Maximum:-20 dBu (> 10 k ohm load)
      -  Monitor Out - Max.: +1 dBu - 32 ohm @9V (16-100 ohm load recommended)
  • Meters: Standard Level: 0 VU (+4 dBu)
