Line 6 P180
Directional Active Antenna Pair

OUR PART #:  P180

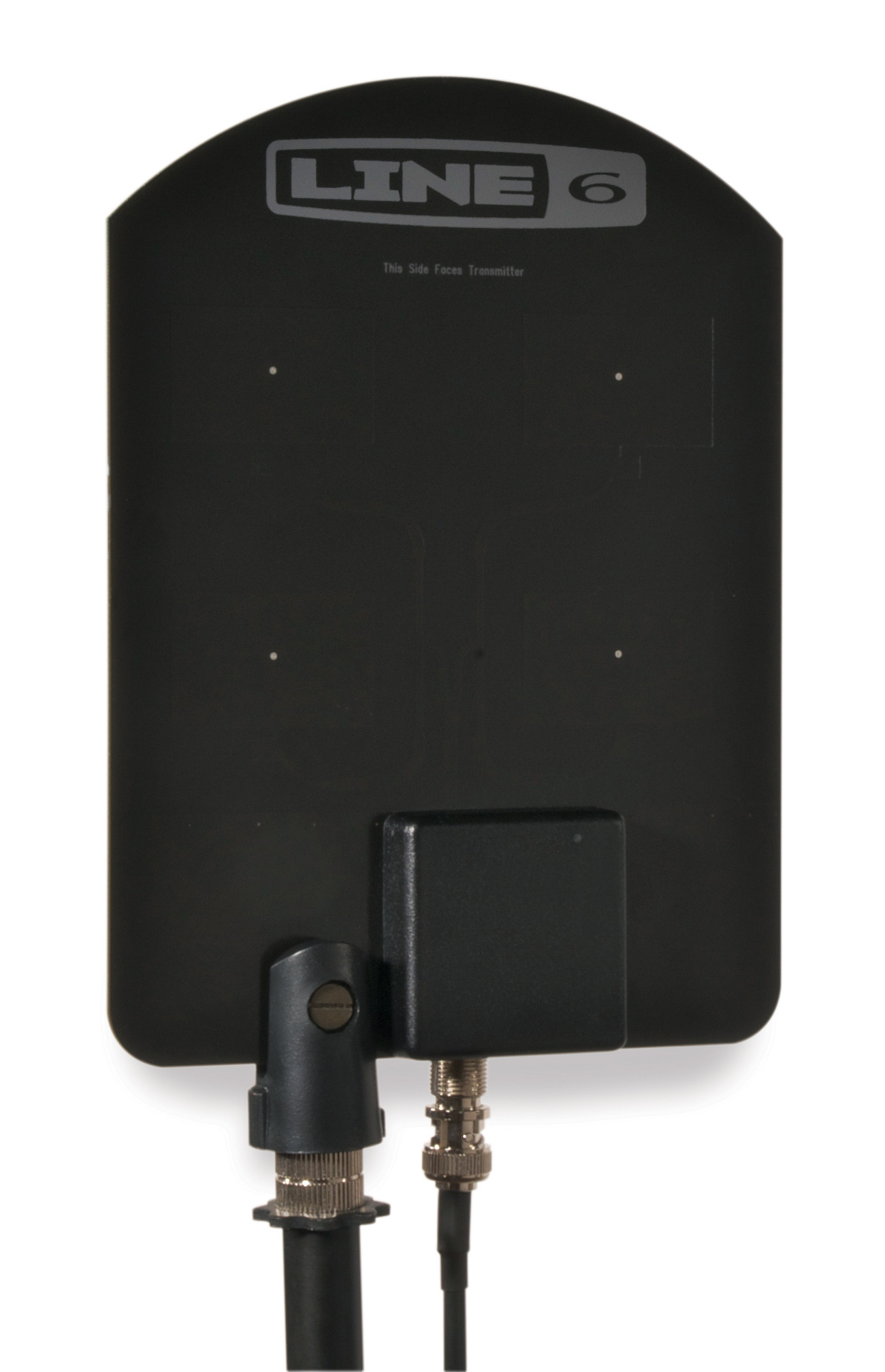

The Line 6 P180 is an active UHF wireless directional antenna for use with 2.4 GHz receivers, including Line 6 Relay G55, Relay G90, XD-V55, XD-V75 and XD-V70.
Learn More
Our Price: $199.99
List Price: $279.99
You save 29%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Line 6 P180
Qty:
In Stock

Similar Products

The Line 6 P180 is an active UHF wireless directional antenna for use with 2.4 GHz receivers, including Line 6 Relay G55, Relay G90, XD-V55, XD-V75 and XD-V70. It features a patch array, and when compared to an omnidirectional 1/2-wave antenna, the cardioid pattern provided by the P180 offers enhanced reception within the desired coverage area and greater rejection of RF signals outside the coverage area. To compensate for coaxial cable signal loss, the Line 6 P180 has an on-board amplifier that offers user-selectable 3dB, 12dB, or 23dB of gain. The Line 6 P180 can be mounted on a microphone stand using the integrated adapter, and for best performance, it is wise to use two.

Line 6 P180 Specifications:

  • Power Source: Remote 2.8 min - 3.6 max Vdc @ antenna via cable connection to receiver
  • Power Consumption: 0.2 W (3 Vdc)
  • Antenna Gain: 12 dB typical (on axis)
  • Amplifier Gain:
  • Gain Switch at 25': 3dB +/- 2dB
  • Gain Switch at 50': 12dB +/- 2dB
  • Gain Switch at 100': 23dB +/- 2dB
  • Reception Pattern: Directional; Cardioid (3 dB Beamwidth, 90┬░)
  • Connector: Female, BNC-type
  • Dimensions: 5.85 in. (148.6 mm) x 6.6 in. (167.9 mm)
  • Stand Adapter: Mic clip standard 5/8 in. in -27 thread
  • Net Weight (without cable): 4.5 oz. (128 grams)
