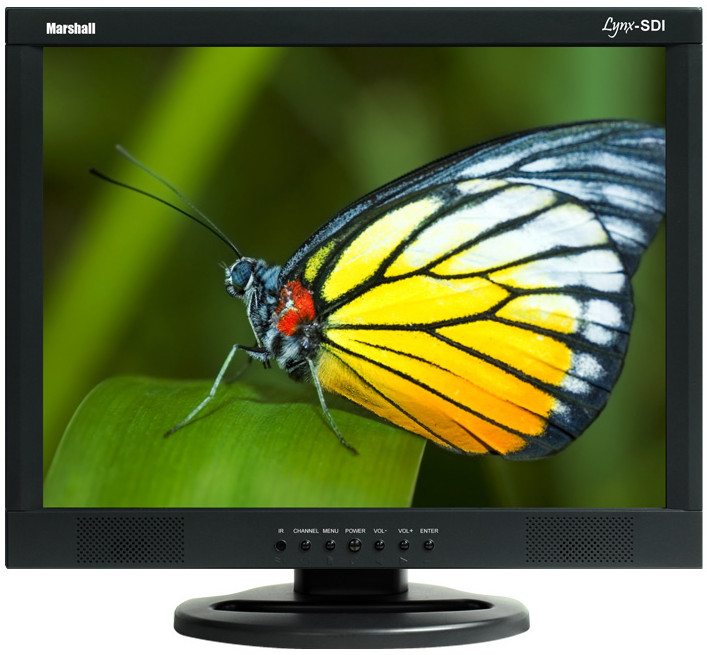

Marshall Electronics M-LYNX-17SDI
17" LCD Monitor with SD/SDI BNC Loop Through


With 1280 x 1024 resolution, the Marshall Electronics M-Lynx-17SDI universal monitor is an excellent choice for audio/visual...
Learn More
Our Price: $1,453.75
List Price: $1,711.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Marshall Electronics M-LYNX-17SDI
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

With 1280 x 1024 resolution, the Marshall Electronics M-Lynx-17SDI universal monitor is an excellent choice for audio/visual, security and industrial applications requiring SDI interface. Incorporating advanced video technologies such as 3D dynamic digital compensation, 3D comb filter, and bandwidth auto compensation, this 17" LCD offers clear and vibrant images in a thin, lightweight package. Additional features include autoclock frequency phase correction, built-in speakers and a user-friendly OSD that makes set-up and operation quick and easy.

Marshall Electronics M-Lynx-17SDI Features:

  • 17" 5:4 LCD Monitor
  • Brightness: 300cd/m²
  • Contrast: 1000:1
  • 3D Comb Filter
  • Dynamic Noise Reduction
  • Wide Viewing Angles

Marshall Electronics M-Lynx-17SDI Specifications:

  • Panel:
    • Panel Size: 17"
    • Diagonal Resolution: 1280 x 1024
    • Aspect Ratio: 5:4
    • Type: LCD
    • Panel Brightness: 300 cd/m²
    • Contrast: 450:1
    • Color Gamut: YUV, RGB
    • Viewing Angles: (CR>=10) 178° / 178°
    • Backlight type: LED
  • Features:
    • Video Formats: NTSC/PAL/SDI
    • Loss of Input Curtain: Yes
    • Self-Sensing: Yes
    • Re-clocked/Re-Shaped: Yes
  • Input Connectors:
    • CVBSx2: Yes
    • SDIx2: Yes
    • VGA: Yes
    • DVI-I: Yes
  • Output Connectors:
    • CVBS: Yes
    • SDI: Yes
  • Audio Input/Output:
    • Audio 1, Audio 2, Audio 3: Yes
  • Controls:
    • Input Status Display: Yes
    • Controls on front Panel: Yes
    • User-Defined Function Buttons: Yes
    • Desk Top/Rack Ears: Yes
  • Power:
    • Voltage: AC100V ~ 230V 50 ~60Hz
    • Consumption Max: 32W
    • Power Switch: Yes
  • Compliance: CE approved
  • Operating Temperature: 0° C ~ 40° C
  • Dimensions: 387mm x 338mm x 67mm
  • Weight (Main Body): 11 lbs
  • Vesa Mount: 75/100 mm
