EAW-Eastern Acoustic Wrks MK8126i-WHITE
2-way, High Output, Single Amp Speaker

OUR PART #:  MK8126I-WHITE

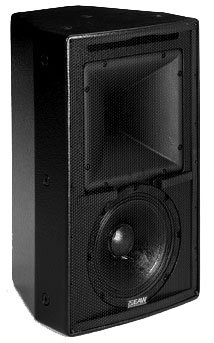

Product shown in image is for illustrative purposes only. Actual product is white in appearance.
Learn More
Our Price: $944.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EAW-Eastern Acoustic Wrks MK8126i-WHITE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Product shown in image is for illustrative purposes only. Actual product is white in appearance.

The MK8126 is a 2-way, high output, trapezoidal loudspeaker designed as nearfield PA for smaller venues, including houses of worship, auditoriums/theaters, A/V systems, hotel ballrooms, and meeting rooms. Its speech projection capabilities also make it ideal for distributed or fill purposes in larger venues, including houses of worship, auditorium/theaters, arenas, stadiums, nightclubs, and themed-entertainment complexes.

To meet the design goals for the intended applications, EAW engineers mated a 1.5-inch voice coil compression driver to a 1 inch exit 120° x 60° HF horn. The horn is as large as the enclosure size allows to maintain consistent directivity throughout the HF passband. A 2-inch voice coil, 8 inch LF driver was designed to complement the sonic character and output of the HF driver. All MK8100 models are carefully voiced to sound similar, permitting diverse horn patterns to be mixed throughout an installation while maintaining the same sonic quality. The results are cleaner, usable, high-fidelity output to significantly higher levels than is normally expected from loudspeakers of this size and price.

Designed for single-amp operation, the beamwidth-matching passive crossover is provides for even power response through crossover, low power losses, and high power handling. Thirteen mounting points allow the enclosure to be mounted in virtually any configuration. Additional mounting points mate with OmniMount® 60.0 Series or similar brackets. Standard colors are black and white. Other colors can be specified as a special order items.

The MK8100 are the smallest companions to the MK2300 and MK5300 Series loudspeakers. While they are well suited as is for many applications, the addition of a subwoofer can expand their capabilities for more demanding applications.

Applications:

  • Houses of Worship
  • Auditoriums/Theatres
  • A/V Systems
  • Ballrooms
  • Gymnasiums
  • Night Clubs
  • Arenas

Features:

  • 120° x 60° nominal beamwidth
  • 8 inch LF woofer, 1.5 inch voice coil HF compression driver
  • Economical single-amp operation
  • Rotatable HF horn provides mounting options
  • Surprisingly high output capability relative to size

Specifications:

Configuration

  • Subsystem:  Transducer  LF 1x 8 inch cone / HF 1x 1 inch exit,1.5 inch voice coil compression driver
  • Loading  LF Vented /  HF Horn-loaded
  • Operating Mode  Amplifier Channels - Single-amp: LF/HF
  • External Signal Processing - High pass filter

Performance

  • Operating Range  60 Hz to 18 Hz
  • Nominal Beamwidth
      -  Horizontal  120°
     -  Vertical  60°
  • Axial Sensitivity ( whole space SPL)
     -  LF/HF: 95 dB   60 Hz to 18 kHz
  • Input Impedance (ohms)
      -  Nominal  LF/HF: 8
      -  Minimum  7.2 @ 178 Hz
  • High Pass Filter  => 60 Hz, 12 dB/octave Butterworth
  • Accelerated Life Test
      -  LF/HF 49V
      -  300 W @ 8 ohm
  • Calculated Axial Output Limit (whole space SPL)
      - Average  LF/HF: 120 dB
      -  Peak  126 dB
