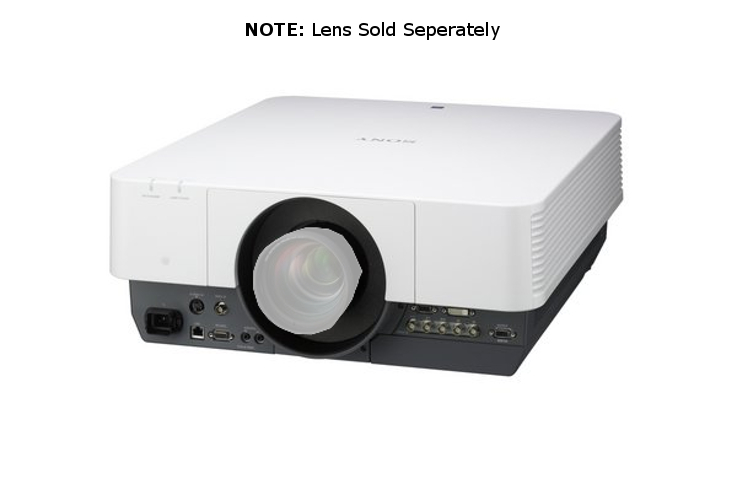

Sony VPL-FX500L
7000 Lumens LCD Projector without Lens


Call for Details

Recommended Accessories

A versatile and ultra-bright BrightEra 3-LCD 7000 ANSI Lumens installation projector with long life and low maintenance

Featuring a very wide range of lens-shift adjustment, and interchangeable lenses, this is a projector that installers can easily fit into awkward places, often reusing mounts and fixtures. The VPL-FX500 is so flexible that it can replace a very wide range of existing equipment.

Outstanding image quality is just one of the many benefits of Sony’s 3 LCD-BrightEra technology. By reducing the effects of UV light, it lengthens panel life, brightens the image, and improves colour rendition.

Maintenance is kept to an absolute minimum. Automatic lamp-switching means that at the end of a lamp’s working life, another one, already in place, is brought into use.

Synchronized lamp and filter cycles halve the required number of maintenance visits.

The VPL-FX500 is the perfect choice for venues that need an extremely bright projector with a high quality image and low maintenance costs


  • 3 LCD XGA BrightEra Panel with enhanced UV protection to reduce the effectof heating on the LCD panel
  • Ultra high brightness: 7,000 ANSI Lumens
  • Wide lens shift range: Vertical: +/- 96%, Horizontal: +/- 64% (dependingon an optional lens)
  • Compatible with lenses from PX30, PX40, FX50, FH300
  • Dual lamp capacity, auto-switched giving effective 6000-8000 hours lamplife
  • Filter maintenance synchronized with lamp replacement
  • Lower operating power consumption than previous models
  • Wide range of inputs for a variety of source devices
  • D-Sub15 output for external monitor connection
  • Wide range of image adjustment



  • Display System: 3 LCD System
  • Effective Display Size: .99" x 3, BrightEra, Aspect: 4:3
  • Effective Pixels: 2,359,296

Displayable Scanning Frequency

  • Horizontal: 14kHz to 93kHz
  • Veritcal: 47Hz to 93Hz

Display Resolution

  • Computer Signal Input: Maxium Display Resolution: 1920 X 1200 Dots(Resizing Display) Panel Display Resolution: 1024 vX 768 Dots
  • Video Signal Input: NSTC, PAL, SECAM, 480/60i, 567/50i, 480/60p,576/50p, 720/60p 720/50p, 1080/60i, 1080/50i, 1080/60p 1080/50p
  • Color System: NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
  • V. Keystone Correction: Max. +/- 30 Degrees
  • OSD Language: 20 languages (English, Dutch, Italian, German, Spanish,Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, SimplifiedChinese Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Persian)

Computer and Video Signal I/O

  • Operating Temperature (Operating Humidity): 0 to 40° C/32 to 104° F (35 to85% (No Condensation))
  • Storage Temperature (Storage Humidity): '-20 to 60° C/-4 to 140° F(10 to90%)
  • Power Requirements: AC 100 to 240V, 4.8 to 2.0A, 50 / 60Hz
  • Input A: RGB / Y PB PR Connector: 5BNC (Female)
  • Input B: RGB Input Connector: Mini D-Sub 15 pin (Female)
  • Input C: DVI-D Input Connector: DVI-D 24 pin (Single Link), supported HDCP
  • S Video In: S Video Input Connector: Mini DIN 4 pin
  • Video In: Video Input Connector: Pin Jack
  • Output: Monitor Output Connector: Mini D-Sub 15 Pin (Female)
  • Other Signal Input/Output: RS-232C Connector: D-Sub 15 pin (Female) LANConnector: RJ45, 10BASE-T/100BASE-TX Control S Input Connector: Stereo MiniJack, Plug in power DC5V Control S Output Connector: Stereo Mini Jack


  • Power Consumption: AC100V - 480W / AC240V - 460W
  • Standby Mode Power Consumption: AC100V - 13W (Standby Mode: Standard)0.1W (Standby Mode: Low) / AC240V - 12W (Standby Mode: Standard) 0.2W (StandbyMode: Low)

Heat Dissipation

  • AC100V: 1638 BTU
  • AC240V: 1570 BTU
  • Safety Regulations: WW Model
  • Body Color White/Gray
  • Standard Outside Dimensions: 20-7/8" x 8-3/8" x 21-15/32"
  • Weight: Approx 44lbs
