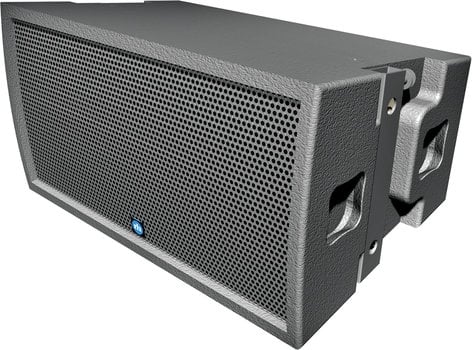

Renkus-Heinz CFX101-LA-8
500W Passive 2-Way Modular Point Source Line Array Module

OUR PART #  CFX101-LA-8

Selected Model Price: $1,519.00
List Price: $2,018.00

Save up to 25%! (Low Price Guarantee)
Select model: (shipping times are approximate)

Designed for power, portability and versatility, the CFX101-LA from Renkus-Heinz is ideal for small & mid-sized venues.  With the flexibility to be flown, ground-stacked or pole-mounted, the CFX101-LA delivers the performance and pattern control of a line array, with the clarity of a point source system, in a compact, sleek and affordable design that's equally at home as a portable system or a permanent installation.

Up to four CFX101-LA cabinets can be arrayed to provide a 90x60 degree coverage pattern, delivering up to 9 dB more output and tighter vertical pattern control than a conventional single cabinet.  Traditional line arrays require 2 or 3 times as many cabinets to provide the same range of coverage.

Alone or combined with the CFX15S subwoofer, the CFX101-LA can be flown, ground-stacked, or pole-mounted, or used as a center cluster to complement an existing left-right system, making it the perfect solution for a wide range of installed or portable sound needs.

Note: This model is a passive version of the CF101-LA & does NOT feature an amp module or a RHAON capabilities.

Features:

  • Renkus-Heinz's Tuned Conic Diverter manipulates the curvature of thewavefront within the horn so that it's curvature matches the curvature of thearray.  As sound progresses through the horn, it's wavefront isprogressively manipulated, passing through a tuned conic diverter, slowing thewavefront's expansion in the center modifying its curvature to match the shapeof the cabinet.
  • Rugged, integral hardware allows for maximum versatility & safety, andfast setup and teardown.  CFX101-LA hardware has been designed to workeither way so left and right systems can be setup symmetrically without theneed for mirror image cabinets.
  • All CFX101-LA cabinets come standard with an integral multi-angle polesocket allowing the cabinet to be supported on a standard 35mm loudspeakerstand, or on a sturdy pole attached to the subwoofer.  This allows thefull-range cabinet to be angled straight ahead, up or down as the situationdemands for optimum coverage and performance.
  • EASE Focus allows users and system designers to quickly and accuratelypredict the response of the array.  Simply define the audience areas andyou can easily place the array, add or remove cabinets and adjust its height,location and angle until you get the desired results in the simulation.
  • As the CFX101-LA can be used in many and varied combinations simple HighFrequency  level control switches are provided on the back of eachcabinet.  The user can select between a Flat response for a singlecabinet, or boost the HF by +6dB or +9dB depending on how many cabinets are inthe array and how much throw is required.

Renkus-Heinz CFX101-LA-8
500W Passive 2-Way Modular Point Source Line Array Module

OUR PART #  CFX101-LA-8

Product Information:

Designed for power, portability and versatility, the CFX101-LA from Renkus-Heinz is ideal for small & mid-sized venues.  With the flexibility to be flown, ground-stacked or pole-mounted, the CFX101-LA delivers the performance and pattern control of a line array, with the clarity of a point source system, in a compact, sleek and affordable design that's equally at home as a portable system or a permanent installation.

Up to four CFX101-LA cabinets can be arrayed to provide a 90x60 degree coverage pattern, delivering up to 9 dB more output and tighter vertical pattern control than a conventional single cabinet.  Traditional line arrays require 2 or 3 times as many cabinets to provide the same range of coverage.

Alone or combined with the CFX15S subwoofer, the CFX101-LA can be flown, ground-stacked, or pole-mounted, or used as a center cluster to complement an existing left-right system, making it the perfect solution for a wide range of installed or portable sound needs.

Note: This model is a passive version of the CF101-LA & does NOT feature an amp module or a RHAON capabilities.

Features:

  • Renkus-Heinz's Tuned Conic Diverter manipulates the curvature of thewavefront within the horn so that it's curvature matches the curvature of thearray.  As sound progresses through the horn, it's wavefront isprogressively manipulated, passing through a tuned conic diverter, slowing thewavefront's expansion in the center modifying its curvature to match the shapeof the cabinet.
  • Rugged, integral hardware allows for maximum versatility & safety, andfast setup and teardown.  CFX101-LA hardware has been designed to workeither way so left and right systems can be setup symmetrically without theneed for mirror image cabinets.
  • All CFX101-LA cabinets come standard with an integral multi-angle polesocket allowing the cabinet to be supported on a standard 35mm loudspeakerstand, or on a sturdy pole attached to the subwoofer.  This allows thefull-range cabinet to be angled straight ahead, up or down as the situationdemands for optimum coverage and performance.
  • EASE Focus allows users and system designers to quickly and accuratelypredict the response of the array.  Simply define the audience areas andyou can easily place the array, add or remove cabinets and adjust its height,location and angle until you get the desired results in the simulation.
  • As the CFX101-LA can be used in many and varied combinations simple HighFrequency  level control switches are provided on the back of eachcabinet.  The user can select between a Flat response for a singlecabinet, or boost the HF by +6dB or +9dB depending on how many cabinets are inthe array and how much throw is required.
