Audix M1255BO High Output Miniature Omnidirectional Condenser Microphone, Black

Designed to capture audio at a distance.

The M1255BO is a miniaturized condenser mic equipped with an omnidirectional polar pickup pattern capsule, fully integrated preamp, and detachable cable. It features very high sensitivity for distance miking applications including ceiling or table mount for conferencing, hanging choir miking, location recording, and audience or room miking. The M1255BO is designed to have complete immunity from RF interference caused by cell phones and GSM devices.

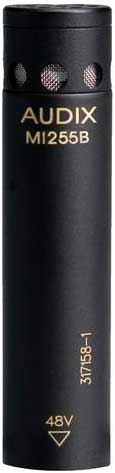

Note: Images shown above are for illustrative purposes only; actual product is the omnidirectional model. Please contact your Sales Pro for more information on this and other products.

Applications

• Speech, Podium, Presentation
• Overhead mic for choir, group vocals
• Acoustic instruments
• Ambient room miking
• Vocal ensembles
• Cymbals, Percussion

Includes

• M1255BO Miniaturized Condenser Mic
• 25-Foot Cable with Mini XLRF-XLRM Connectors
• Mic Stand Adapter
• Hanging Clip
• External Windscreen

Features

• Small, lightweight, low profile
• Miniaturized preamp circuitry
• No external power adapter needed
• 12 mm gold vapor diaphragm
• Immune to RF interference
• Extremely low noise, high SPL handling
• Designed, assembled, manufactured & tested in the USA
• 3 year warranty

Specifications

• Transducer Type: Condenser
• Frequency Response: 50 Hz – 19 kHz
• Polar Pattern: Omni
• Output Impedance: 150 ohms
• Sensitivity: 40 mV / Pa @ 1k
• Equivalent Noise Level: 21 dB (A-weighted)
• Signal to Noise Ratio: 73 dB
• Maximum SPL: ≥ 130 dB
• Power Requirements: 18 – 52 V
• Connector: 3 pin mini-XLRm
• Material: Machined brass
• Finish: Black
• Weight: 16 g (0.56 oz)
• Length: 54 mm (2.1")
