Ace Backstage Co. ISO104BBX
AC Isolated Double Wide Back Box, with Isolation Bracket

OUR PART #:  ISO104BBX

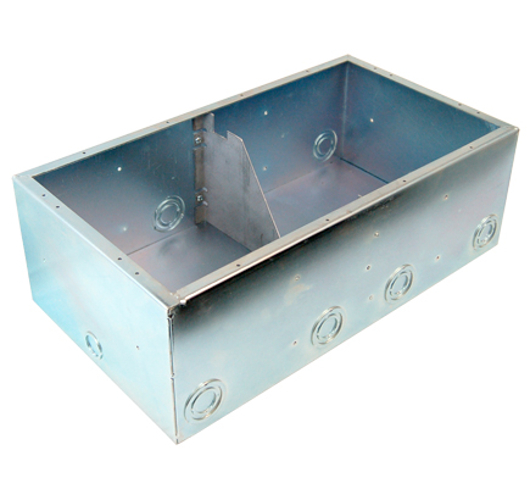

Isolated ACE Back Boxes include a galvaneal steel separation bracket mounted inside the back box to provide isolation between high and low voltage for ACE Stage Pockets.
Learn More
Our Price: $142.86
List Price: $179.55
You save 20%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ace Backstage Co. ISO104BBX
Qty:
In Stock
Similar Products

Isolated ACE Back Boxes include a galvaneal steel separation bracket mounted inside the back box to provide isolation between high and low voltage for ACE Stage Pockets. Installing ISO Back Boxes during the rough-in stage of construction saves the installer time and hassle in the finish-stage. High voltage conduit can enter the back box through combination knockouts on one side of the back box and low voltage through the opposite side. The connector and AC panels can be terminated and left inside the ISO back box until carpet is laid or floors are finished. In the final, finish stage the installer can pull the terminated connector panels through the back access opening in the ACE Pocket and secure the pocket bezel to the finished floor.

The Isolation Bracket sits tightly beneath the pocket, inside the back box, to maintain secure separation of high and low voltage, ensuring manual isolation.

Ace Backstage Co. ISO104BBX Features:

  • DURABLE CONSTRUCTION: ACE Standard Back Boxes (#BBX) are made from tough, welded 14 gauge steel (.071" thick). Ace Standard ACIsolation Brackets (#ISOBRKTx) are made from 16 gauge galvaneal (.064" thick).
  • ELECTRICAL KNOCKOUTS: ACE Standard Back Boxes come with standard Electrical Conduit Combination Knockouts. 1/2", 3/4", 1", and1-1/4" Knock Outs multiple places typical on opposing sides. 1/2" and 3/4" Knock Outs multiple places typical on opposing sides.
  • PROTECTIVE COVER: Included with all ACE Back Boxes isa disposable, protective cover. Finished in the same corrosion resistant zincas the back box itself, the cover protects the box until the stage pocket is installed in the finish-stage of construction.
  • DURABLE FINISH: Clear zinc corrosion-resistant finish

NOTE: Not suitable for Mini or Half Back Box applications.
