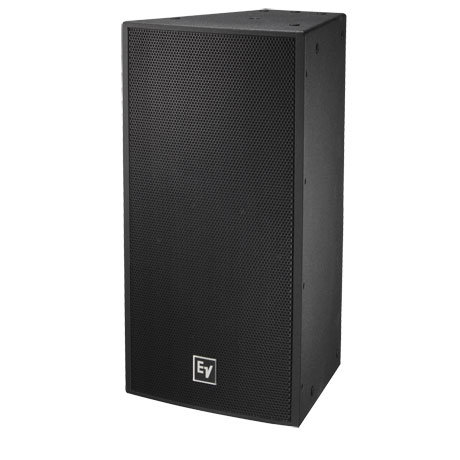

Electro-Voice EVF1122D/126-BLACK
Single 12" Two-Way, 120° x 60°, Full-Range Loudspeaker System, Black

OUR PART #:  EVF1122D/126-BLACK

EVF-1122D/126 features a 120° x 60° rotatable waveguide, design for near field widest throw coverage pattern.
Learn More
Our Price: $2,390.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice EVF1122D/126-BLACK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

EVF-1122D/126 features a 120° x 60° rotatable waveguide, design for near field widest throw coverage pattern.

Features:

  • Designed for Club Sound, Performance & Sports Venues, Stadium Systems, and other applications.
  • DH7N 3” (76 mm) diaphragm, 1.4” (36 mm) exit pure titanium compression driver
  • DVX3121A 12” (305 mm) LF transducer with fully symmetric drive
  • Advanced fourth-order crossover network with HF protection
  • Coverage pattern: 120° x 60° Constant DirectivityTM 12” rotatable waveguide
  • 97 dB sensitivity, 131 dB maximum SPL
  • System rating: 600 W continuous, 2400 W peak
  • Active rating: LF 500 W/HF 75 W continuous (2000 W/300 W peak)
  • (22) M10 threaded suspension points
  • PI version available with gland nut and stainless-steel grille

Specifications:

  • Input Connections Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals
  • Frequency Response (-3 dB) 57 Hz - 18 k Hz
  • Frequency Response (-10 dB) 49 Hz - 21 k Hz
  • Recommended High-Pass Frequency 65 Hz
  • Sensitivity 1 W/1 m 97 dB
  • Max. SPL/1m (calc) 131 dB

Coverage

  • (Nominal -6 dB) H° 120 °

Coverage

  • (Nominal -6 dB) V° 60 °
  • System Power Handling (Continuous/Program/Peak) 600/1200/2400 Watts
  • LF Transducer DVX3121A, 12” (305 mm) driver
  • LF Nominal Impedance 8 O
  • HF Transducer DH7N, 3” (76 mm) diaphragm compression driver
  • Crossover Frequency 1300 Hz
  • Nominal Impedance (Passive) 8 O
  • Minimum Impedance 6 O
  • Enclosure Material 13-ply weather-resistant birch with EVCoat
  • Grill 16 GA powder-coated galvanneal with rotatable logo
  • Suspension (22) M10 threaded suspension points
  • Height 768.6 mm (30.26")
  • Width 406.3 mm (16")
  • Depth 413.3 mm (16.27")
  • Weight Net 29.7 kg (65.48 lbs)
  • Shipping Weight 34.4 kg (75.84 lbs)
