Electro-Voice CPS4.10 4-Channel Power Amplifier, 4x1000W into 2 or 4 Ohms

OUR PART #: CPS4.10 MFR #: F.01U.101.295

Copied to clipboard

This four-channel CPS amplifier from Electro-Voice features groundbreaking Class-D technology for maximum amp efficiency and minimized heat dissipation in 19-inch racks. ...Read more

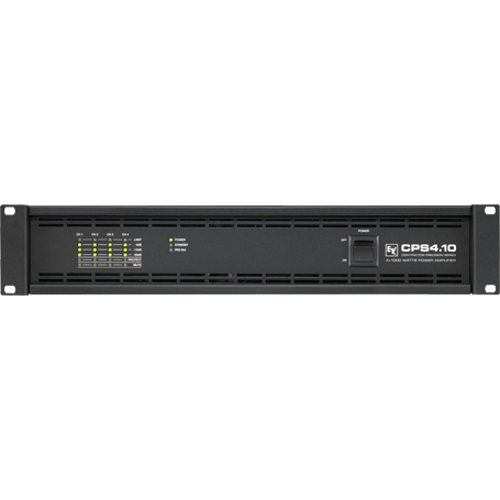

Electro-Voice CPS4.10 4-Channel Power Amplifier, 4x1000W Into 2 Or 4 Ohms Image 1
Electro-Voice CPS4.10 4-Channel Power Amplifier, 4x1000W Into 2 Or 4 Ohms
Our Price: $3,218.99
List Price: $4,851.00
You save 34%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$90/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

This four-channel CPS amplifier from Electro-Voice features groundbreaking Class-D technology for maximum amp efficiency and minimized heat dissipation in 19-inch racks.

Each channel individually provides transformerless, switchable output characteristics, which enable specific channels to achieve maximum drive. Power into 2 Ohms, 4 Ohms, 70V, or 100V line – no transformers are required. In Hi-Z operation (70V or 100V), a 50 Hz high-pass filter (HPF) provides protection against loudspeaker transformer saturation. Additionally, amplifier channels can be bridged in pairs for double output power.

Each contractor-friendly, multi-channel CPS amplifier also features Phoenix-type connectors for inputs and outputs, pre-programmable power-on delay, easy power-on remote via contact closure, and rear level controls.

A module slot for the RCM-810 remote control module provides control network functionality, allowing for remote system diagnostics and control via IRIS-Net software. In addition, using the RCM-810’s Variable Load Drive feature can tailor the amplifier’s output power to match every load from 2 Ohms up to 10 Ohms in steps of 0.1 Ohms.

Electro-Voice CPS4.10 Features:

  • Class-D design for high-efficiency and low heatdissipation
  • Flexible matching for Low-Z and High-Z applications
  • Optional remote control via IRS-Net
  • Four-channel design in 2RU chassis

Electro-Voice CPS4.10 Specifications:

  • Maximum Midband Output Power (THD=1%, 1kHZ):
    • 4 x 1000W @ 2ohms
    • 4 x 1000W @ 4 ohms
    • 4 x 1000W @ 70 volts
    • 4 x1000W @ 1000 volts
  • Rated Output Power (THD < 0.3%, 20Hz-20kHz):
    • 4 x 900W @ 2ohms
    • 4 x 900W @ 4 ohms
    • 4 x 900W @ 70V
    • 4 x900W @ 100V
  • Maximum Bridged Output Power (THD=1%, 1kHz):
    • 2 x 2000W @ 4ohms
    • 2 x 2000W @ 8 ohms
    • 2 x 2000W @ 140V
    • 2 x 2000W @ 200V
  • Maximum RMS Voltage Swing (THD=1%, 1kHz, per channel): 100V
  • Power Bandwidth (THD=1% ref.1kHz, half power @ 4 ohms load): 10Hz-25kHz,50Hz-25kHz
  • Voltage Gain, ref. 1kHz: 32 dB (2ohm/4ohm mode), 33dB (70V mode), 36dB(100V mode)
  • THD at rated output power (MBW=80kHz, 1kHz): < 0.05%
  • IMD-SMPTE, 60Hz, 7kHz: < 0.5%
  • DIM30, 3.15kHz, 15kHz: < 0.02%
  • Maximum Input Level: +21dBu
  • Crosstalk, ref. 1kHz at rated output power: < 80dB
  • Frequency Response, ref. 1kHz: 10Hz-30kHz (+/-1dB)
  • Input Impedance, active balanced: 20k ohms
  • Damping Factor, 1khz, 8 ohms: >240
  • Slew Rate: 28V/us
  • Output Noise, A-weighted: < -66dBu
  • Output Stage Topology: Class D
  • Power Consumption, 1/8 max. output power @ 4 ohms: 840W
  • Power Requirements: 220-240V, 50-60Hz or 120V, 50-60Hz or 100V,50-60Hz
  • Protections: Audio Limiters, Temperature, DC, HF Short Circuit, PeakCurrent Limiters, Inrush Current Limiters, Turn-on Delay
  • Cooling: Front-to-rear, continuously variable fans
  • Ambient Temperature Limits: 40° to 105°F
  • Safety Class: I
  • Dimensions (W x H x D): 19" x 34.7" x 16.6"
  • Weight: 24.6 lbs
  • Optional Accessories:
    • 2-way internal X-Over cards, 24dB, LR, XHP-5 for500Hz/XHP-8 for 800Hz
    • RCM-810 IRIS-Net Control & Supervision Module
    • Rear-Rackmount Kit RMK-15
