Schoeps UNIVERSAL-OMNI-H-ST
2 CMC6U w/MK2 H Omnis,SG20,B5D

OUR PART #  UNIVERSAL-OMNI-H-ST

Selected Model Price: $3,125.00
(Low Price Guarantee)
Select model: (shipping times are approximate)

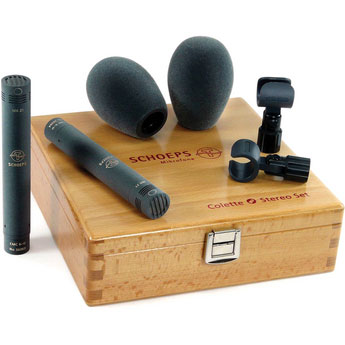

A stereo pair of Schoeps microphones. The set includes 2 CMC6U preamps, 2 MK2H Omni capsules, 2 SG20 stand clamps and 2 B5D windscreens.

The MK2H capsule when used indoors at medium recording distances, its overall response will be linear. Its extended frequency response and low noise make it appropriate for the most demanding applications.

The sound inlet of the MK2H is narrower than that of other Shoeps pressure transducers, causing a slight, purely acoustic response elevation above 6kHz. This reduces the high frequency loss for diffuse sound, thus helping to preserve natural sound quality.

FEATURES

  • Omnidirectional pattern
  • Mild high-frequency rise to compensate for losses at medium recording distance
  • Often chosen for "spaced microphone" stereo pickup and "Decca Tree" arrangements

SPECIFICATIONS

  • Frequency range: 20 Hz - 20 kHz
  • Sensitivity: 15 mV/Pa
  • Equivalent noise level (A-weighted): 11 dB-A
  • Equivalent noise level (CCIR): 23 dB
  • Signal-to-noise ratio (A-weighted): 83 dB-A
  • Maximum sound pressure level at 0.5% THD: 130 dB-SPL





Click to download

Schoeps UNIVERSAL-OMNI-H-ST
2 CMC6U w/MK2 H Omnis,SG20,B5D

OUR PART #  UNIVERSAL-OMNI-H-ST

Product Information:

A stereo pair of Schoeps microphones. The set includes 2 CMC6U preamps, 2 MK2H Omni capsules, 2 SG20 stand clamps and 2 B5D windscreens.

The MK2H capsule when used indoors at medium recording distances, its overall response will be linear. Its extended frequency response and low noise make it appropriate for the most demanding applications.

The sound inlet of the MK2H is narrower than that of other Shoeps pressure transducers, causing a slight, purely acoustic response elevation above 6kHz. This reduces the high frequency loss for diffuse sound, thus helping to preserve natural sound quality.

FEATURES

  • Omnidirectional pattern
  • Mild high-frequency rise to compensate for losses at medium recording distance
  • Often chosen for "spaced microphone" stereo pickup and "Decca Tree" arrangements

SPECIFICATIONS

  • Frequency range: 20 Hz - 20 kHz
  • Sensitivity: 15 mV/Pa
  • Equivalent noise level (A-weighted): 11 dB-A
  • Equivalent noise level (CCIR): 23 dB
  • Signal-to-noise ratio (A-weighted): 83 dB-A
  • Maximum sound pressure level at 0.5% THD: 130 dB-SPL





Click to download
