2 CMC6U w/MK2 Omnis,SG20,B5D


Selected Model Price: $3,125.00
(Low Price Guarantee)
Select model: (shipping times are approximate)

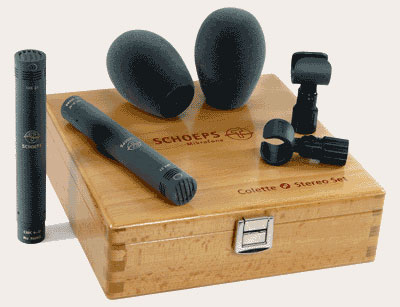

A stereo pair microphone set consisting of 2 CMC6U preamps, two MK2 Omni capsules, two SG20D stand clips and two B5D wind/popscreens.

CMC6U Preamp

The CMC 6 is designed for standard 48- and 12-Volt phantom powering. Its circuitry recognizes the supply voltage and adjusts itself automatically. Its performance characteristics remain essentially the same either way; mainly, the difference is that the current drawn at 12 Volts is greater than at 48 Volts. However, the 12-Volt mode consumes less power and might be preferred for battery-powered recording.

The microphone amplifier provides the electrostatic charge which the capsule requires in order to produce a signal. Since only a miniscule amount of current is contained in this signal, amplification of the current is required. To avoid interference to the signal on the way from the microphone to the input of the mixer or preamp, the signal is conveyed at low impedance and in balanced form. The CMC 6 amplifier offers a symmetrical, transformerless, direct-coupled Class A output stage with low impedance, low distortion, and high freedom from interference.

CMC6U Features

  • Flat frequency response
  • Extremely low noise and distortion
  • Balanced, very low impedance output
  • Can be used with very long cables
  • Well-protected against RFI
  • For use with 12V or 48V phantom powering

CMC6U Specifications

  • Powering voltage: 12 / 48 V
  • Current consumption with 12V: 8 mA
  • Current consumption with 48V: 4 mA
  • Impedance (at 12 V): 25 O
  • Impedance (at 48 V): 35 O
  • Low-cut frequency: 20Hz
  • Maximum output voltage: 1V
  • Minimum recommended load impedance: 600O
  • Length: 4.57"
  • Diameter .79"
  • Weight: .13lbs
  • Surface finish matte gray (g) or nickel (ni)

MK2 Omni Capsule

This capsule type has a flat frequency response for frontal sound incidence. This yields a very natural sound when recordings are made within the reverberation radius, where the direct sound (frontal incidence) predominates over the reverberant sound (random angles of incidence).

MK2 Features

  • Omnidirectional pattern
  • Very flat frequency response
  • Corrected for a free sound field
  • For use close to the sound source
  • Often preferred for relatively close miking of instruments, vocalists, etc.

MK2 Specifications

  • Frequency range: 20Hz - 20kHz
  • Sensitivity: 16mV/Pa
  • Equivalent noise level (A-weighted) 11dB-A
  • Equivalent noise level (CCIR): 23dB
  • Signal-to-Noise ratio (A-weighted): 83dB-A
  • Maximum sound pressure level at 0.5% THD: 130dB-SPL
  • Length: .87"
  • Diameter: .79"
  • Weight: 0.04lbs
