Renkus-Heinz CF15S-5R 500W 15" Active Subwoofer with PF1-500R Amp Module & RHAON

OUR PART #: CF15S-5R

Copied to clipboard

Alone or combined with the CF15S subwoofer, the CF101-LA can be flown, ground-stacked... ...Read more

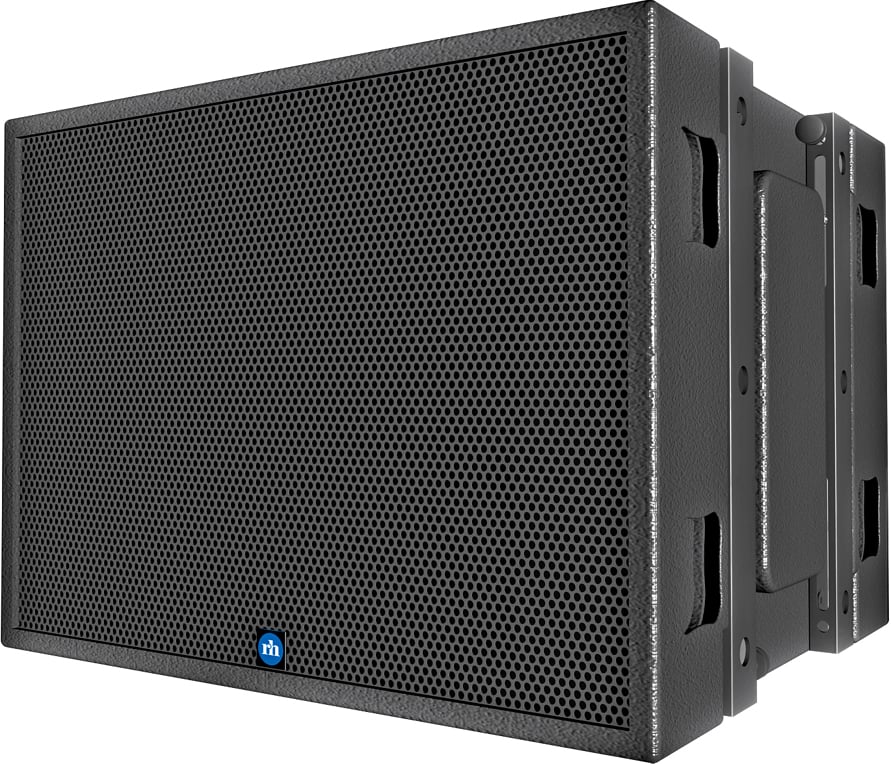

Renkus-Heinz CF15S-5R 500W 15" Active Subwoofer With PF1-500R Amp Module & RHAON Image 1
Renkus-Heinz CF15S-5R 500W 15" Active Subwoofer With PF1-500R Amp Module & RHAON
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Alone or combined with the CF15S subwoofer, the CF101-LA can be flown, ground-stacked, or pole-mounted, or used as a center cluster to complement an existing left-right system, making it the perfect solution for a wide range of installed or portable sound needs.

Along with being a dedicated companion subwoofer to the CF101 Point Source Line Array, the CF15S can be used to create directional cardioid and steerable arrays as well.

As the companion piece to the CF101, the CF15S allows for many means for mechanical attachment to the CF101. For simple ground stack applications, the optional adjustable rod allows one or two CF101's to suspend over the CF15S.

When mounted on a stage, the CF101's can be mounted directly to the CF15S using the integrated hardware to create a safe, secure system that can also cover audiences in raked theater style seating. When it is desirable to fly the CF101's, they can be nested directly underneath CF15S with the integrated, matching hardware.

As a stand alone subwoofer, the CF15S can be deployed in stacked or flown cardioid arrays using simple presets in RHAON. In addition the integrated hardware is rated to allow for the creation of flown subwoofer arrays tall enough to be directional below 100Hz.

Using RHAON, these arrays can then be "steered" to put sub frequencies where they are needed, avoiding floor, ceiling, and rear wall reflections for maximum clarity and impact.

Additional Features:

  • Renkus-Heinz's Tuned Conic Diverter manipulates the curvature of the wavefront within the horn so that it's curvature matches the curvature of the array. As sound progresses through the horn, it's wavefront is progressively manipulated, passing through a tuned conic diverter, slowing the wavefront's expansion in the center modifying its curvature to match the shape of the cabinet.
  • The CF15S matched subwoofer employs the same simple yet sturdy hardware enabling the CF/CFX101 system to be flown underneath the subs.
  • EASE Focus allows users and system designers to quickly and accurately predict the response of the array. Simply define the audience areas and you can easily place the array, add or remove cabinets and adjust its height,location and angle until you get the desired results in the simulation.
  • As the CF101-LA can be used in many and varied combinations simple High Frequency level control switches are provided on the back of each cabinet. The user can select between a Flat response for a single cabinet, or boost the HF by +6dB or +9dB depending on how many cabinets are in the array and how much throw is required.

Note:

This version of the CF Series subwoofer comes with the PF1-500R amp module and is RHAON capable.
