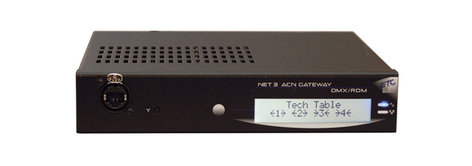

ETC/Elec Theatre Controls N34G-4F
Net3 Four-Port DMX Gateway with 4 Outputs

OUR PART #:  N34G-4F

The ETC Net3 Four Port Gateway is a network data distribution device designed to take advantage of the quality and reliability of ETC’s Network development...
Learn More
Our Price: $1,600.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


ETC/Elec Theatre Controls N34G-4F
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ETC Net3 Four Port Gateway is a network data distribution device designed to take advantage of the quality and reliability of ETC’s Network development, built for both the proven ETCNet2™ protocols and the new industry standard ACN. The Gateway is an Ethernet native network device that uses bidirectional communication with other network devices to send/receive DMX512 digital signals (as well as RDM depending on software mode) via the four configurable ports on the rear of the unit.

ETC N34G-4F Features:

  • Four ports of distributed DMX over Ethernet
  • Supports Net3 protocol powered by ACN
  • Supports ETCNet2
  • DMX/RDM Output/Input (RDM with Net3 Release 2 only)
  • Distributes DMX data to any input/output device such as dimmers, scrollers, moving lights, and DMX consoles
  • Modular DMX/RDM port design provides easy configuration of port connector type and replacement
  • DMX via XLR 5-pin Male, Female and terminal strip connectors
  • LCD screen for labeling, status and configuration information
  • LED power and network indicators
  • Supports Power over Ethernet (PoE) as well as an external DC power supply
  • Versatile compact size
  • Configurable via a network software utility or directly through ACN
  • Applications:

    • Road House
    • Touring
    • University/Professional Theatre
    • Convention Hall
    • Tech Tables
    • Stage Managers Panels

ETC N34G-4F Specifications:

  • General:
    • Compliant with IEEE 802.3i for 10BASE-T, 802.3u for 100BASE-TX and 802.3aff or Power over Ethernet
    • CE compliant and ETL Listed
    • RoHS Compliant (lead-free)
    • ETCNet2 and Net3/ACN protocols
    • Meets RDM BSR E1.20 Standard
    • USITT DMX512 and ANSI E1.11 DMX512-A compliant
  • Mechanical:
    • Fabricated of 16-gauge steel
    • Finished in fine-texture, scratch-resistant, black powder coat
    • Backlit LCD display for identification (soft-labeling) and status reporting
    • Reset button for hard reset/forced reboot
    • Single RJ45 Ethernet jack on front of unit
    • 1/2 rack width allows for up to 8 DMX ports in 1U height
    • Hanging Bracket allows mounting in 4 orientations, includes U-bolt hardware (C-clamp available)
  • Processor:
    • Maximum delay time from input to output not greater than one packet time (minimum 22 mSec.)
    • Four selectable DMX output update rates with maximum setting not less than 40Hz
  • Environmental:
    • Ambient operating temperature: 0° to 40°C (32° to 104°F).
    • Storage temperature: -40° to 70°C (-40° to 158°F).
    • Operating humidity: 5% - 95% non-condensing.
  • Power:

    • Power Supply options include:
      • 8 to 28Vdc external power supply
      • 48V IEEE 802.3af Power over Ethernet
    • Maximum power consumption 5 watts
  • Modular DMX Ports:
    • Up to 4 DMX ports - four module locations on the rear
    • Each module contains a single connector and its associated electronics
    • Capable of withstanding fault voltages of up to 250VAC
    • Switch for DMX/RDM termination
    • Connector module options include:
      • XLR 5-Pin Male DMX input connector
      • XLR 5-Pin Female DMX output connector
      • RJ45 DMX connector
      • ScrewTerminal strip connector (DMX Termination kit included)*
        * Contact your Sales Professional for information on optional IDC termination kit to support Cat 5, 5E, or 6 cable.
    • Module secured by panel screw
    • Pull-tab for easy removal
    • Shipping Weight: 7.9 lbs.
    • Shipping Dimensions: 13.75" x 18" x 5.75"
