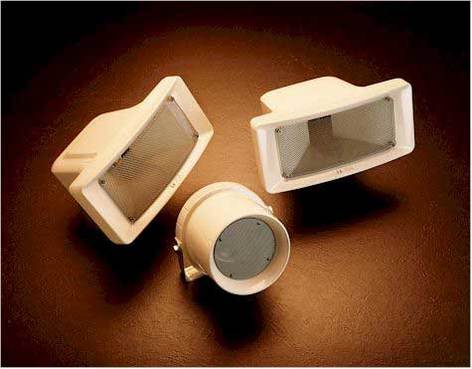

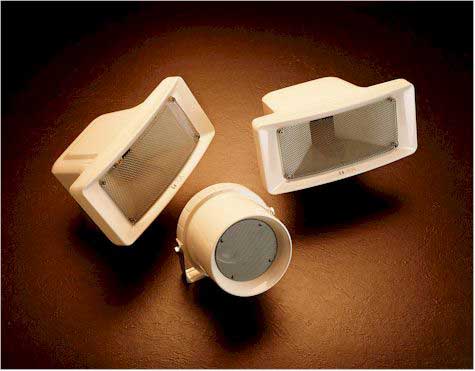

TOA CS-154U Wide-Ranging 15W Paging Weatherproof Speaker, UL-Listed

TOA CS series wide-range paging speakers are ideal for indoor and outdoor commercial sound system applications for voice paging, background music and tone signaling distribution. Compared to traditional metal paging horns, CS Series speakers offer wider frequency range and superior sound quality. It includes a built-in 70.7V / 100V transformer with screwdriver-adjustable power taps. All CS models are fully weather-resistant to withstand demanding environmental conditions with a sealed enclosure, full-range moisture-resistant cone speaker, stainless-steel mounting hardware and a protective mesh grille. The enclosure is also coated with polyurethane resin paint to resist the fading effects of prolonged exposure to ultraviolet light. The CS Series Wide-Range Paging Speakers are backed with a five year warranty. Also see the new SC Series Paging Horn Speakers. The CS154 / U has an output of 15 Watts and is UL listed.

Features

• Weather resistant
• Constant directivity coverage
• High sensitvity (up to 98dB, 1W @ 1m)
• Moisture-resistant speaker component (4.72")
• Built-in 70V / 100V transformer
• Lightweight, sealed enclosure
• Cable strain-relief
• Polyurethane resin paint (resists fading from UV light)
• IEC IP-64 Standards Compliant (dust and moisture resistance)
• Wide temperature range (-4 to 131 degrees F)
• Stainless steel mounting bracket
• Protective stainless-steel mesh grill

Specifications:

• Rated Input: 15W
• Rated Impedance:
  • 100V line: 670Ω (15W), 1kΩ (10W), 2kΩ (5W)
  • 70V line: 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W)
• Sensitivity: 97dB (1W @ 1m)
• Frequency Response: 150Hz - 15kHz
• Speaker Component: 12cm cone-type
• Horizontal Directivity: Constant directivity horn 90° (±45° horizontal from front axis) 93dB or more (1W @ 1m), 3kHz at ±45°
• Speaker Cord: 2-core cabtyre cord with diameter of 6mm, UL Code: UL1480 (UEAY (outdoor use))
• Dust / Water Protection: IP65
• Finish:
  • Horn, cover: Fire-resistant ABS resin, off-white, paint
  • Bracket: Stainless steel
  • Net: Aluminum, gray, paint
• Screw: Stainless steel
• Dimensions: 366 (W) × 230 (H) × 272 (D) mm
• Weight: 2.8kgs
