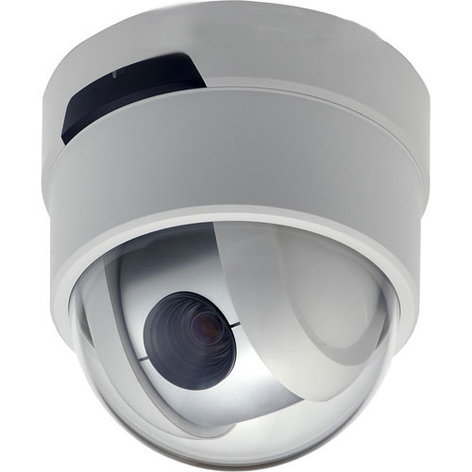

Elmo PTC400C
Day/Night Indoor PTZ Camera

OUR PART #:  PTC400C

The Elmo PTC-400C is a feature rich PTZ camera designed for indoor applications.
Learn More
Our Price: $936.00
List Price: $1,040.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Elmo PTC400C
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Elmo PTC-400C is a feature rich PTZ camera designed for indoor applications. This camera offers a full array of pan, tilt and zoom operation including a powerful 12x zoom, 350 degrees of continuous pan and 16 preset positions. A Day/Night function ensures quality images 24-hours a day. This camera runs on 12 VDC power and includes a remote control.

Features:

  • High speed pan, tilt and zoom
  • 12x Optical Zoom
  • 16 Preset PTZ positions
  • Switches to monochrome mode under low light levels for dependable day or night operation
  • Area masking allows blocking certain portions of the image for privacy or legal reasons
  • Auto flips the camera 180° when following an object directly under the dome
  • Remote control included, capable of operating up to 9 cameras

Specifications:

  • Signal System: NTSC
  • Image Sensor: 1/4" Color CCD
  • Lens:
    -Focal Length: 3.8-45.6mm
    -Zoom: 12x Optical, 16x digital
    -Iris: F1.6-2.7
    -Focus: Auto/Manual
    -Field of View: 52.8-4.5°
  • Number of Pixels: 380,000 effective
  • Horizontal Resolution: 470 Lines
  • Minimum Illumination: 1 Lux
  • Signal-to-Noise Ratio: 49dB
  • Pan Angle: +/- 175° (350° total)
  • Pan Speed: 100°/sec (8-speeds auto/manual)
  • Tilt Angle: -195 - 15° (210° total)
  • Tilt Speed: 100°/sec (8-speeds auto/manual)
  • Preset Positions: 16
  • Camera Controls:
    -Back-Light Compensation
    -Iris Selection
    -White Balance
    -AGC
    -High Speed Shutter
    -Electronic Sensitizing
    -Area Masking
    -Image Flip
  • Day/Night: Yes
  • Connectors:
    -Video: BNC Out x 1
    -Control: RS-485
  • Sync: Internal
  • Power Requirements: 12VDC
  • Power Consumption: 12W
  • Operating Temperature: 14-122°F
  • Dimensions: 5.5" diameter, 4.7" high
  • Weight: 1.7 lbs.
