Rolls MX34C
2 Channel Field Mixer


Our Price: $94.00
List Price: $125.00
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

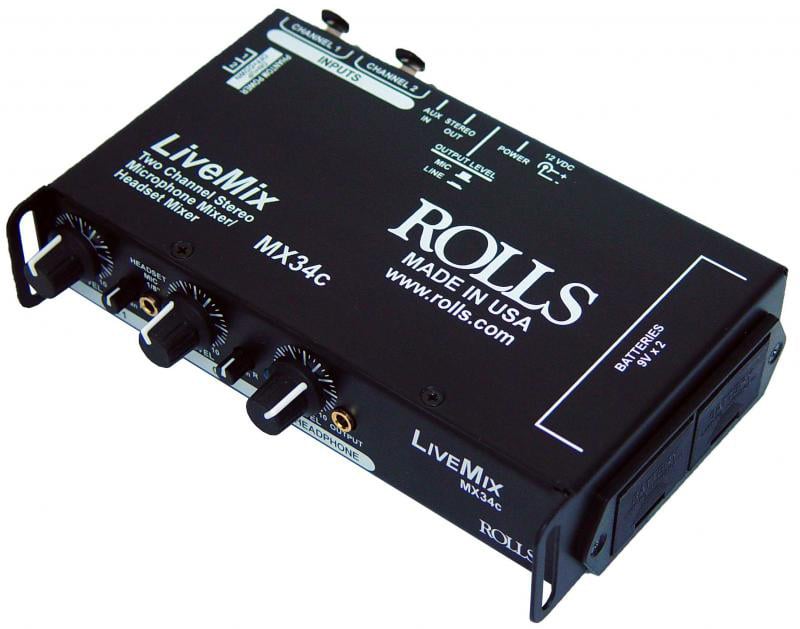

Rolls' MX34c LiveMix is a two channel microphone mixer that was originally designed with the video camera operator in mind.  The MX34c has balanced XLR inputs, phantom power, and stereo 1/8" (3.5mm) outputs.  The 3.5mm output may be switched either mic or line level.  It has a stereo 1/8" (3.5mm) Auxiliary input for connection to any stereo line-level source such as an AM/FM tuner, CD player etc.  And a 3.5mm headset mic in on the front for narration, etc.  Each channel has a Level and Pan control, and a separate headphone circuit allows for monitoring all signals without effecting the main output signal.  Holes for a shoulder strap, easy-access controls, and smart Input/Output jack placement make the MX34c ideal for the live recording enthusiast.  The 9V alkaline batteries ensure adequate signal strength as well as phantom power for your favorite condenser microphone.

MX34c Live Mix:

  • 9V Battery or AC adapter operation
  • 2 Mic Inputs
  • +18VDC Phantom Power
  • 3.5mm Stereo Output
  • 3.5mm Stereo Headphone Output
  • Pan control on each channel
  • Auxiliary 3.5mm Input
  • 3.5mm mic in jack for headset or other mic
  • Mic/Line Switch for each XLR Input


  • Input Impedance: Mic - 600 Ohms or greater (XLR), Aux - 47K stereo (3.5mm)
  • Output Impedance: 50 Ohms
  • THD + Noise: .02%
  • S/N Ratio: 110 dB
  • Frequency Response: 20 Hz - 30 kHz (+0 / -1 dB)
  • Max Output Level: + 14 dB
  • Max Input Level: +20 dB
  • Max Gain: +70 dB
  • Batteries: 2 X 9V Alkaline
  • Current Draw: 30 mA
  • Phantom Power: +18 VDC
  • Input Connectors: 2 Female XLR, 1/8" (3.5mm)
  • Output connectors: 3.5mm Stereo Main Out, 3.5mm Headphone
  • DC Power Jack: (5.5mm X 2.1mm Tip Negative)
  • Size: 6.3" W x 3.7" D x 1.4" H
  • Weight: 1 lb
