Product Overview

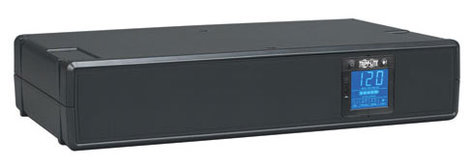

Tripp Lite's SMART1200LCD Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs or individual VCR/DVR components during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits regulate brownouts and overvoltages from 75V to 147V back to usable levels without using battery power. Offers complete power protection with support for upright tower, flat shelfmount or 2U rackmount installation in an attractive all-black cabinet design. Includes 8 battery-supported outlets. Built-in USB and DB9 serial ports enables optional unattended system shutdown without data loss in case of extended power failure; cabling included.
PowerAlert Software available via free download from www.tripplite.com. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in single-line RJ-45 jacks offer protection for equipment with single-line tel/DSL or network Ethernet connection. Built-in audible alarm and large LCD front panel voltage display indicates line power status, battery power status, battery low/replace status and voltage boost operation. The LCD display includes a dimmer switch and can be rotated for easy viewing in any application. 1200VA/700W power-handling capacity supports entry-level PCs, home entertainment systems, network workstations and audio/video components. Offers 4 min. battery runtime with a full load of 1200VA/700W and 12 min. with a half load of 600VA/350W. 3-year warranty; $250,000 connected equipment insurance (USA & Canada only).
Key Features
- LCD display indicates input voltage, battery capacity and a variety of operating conditions. Display is roatable for easy viewing whether UPS is in vertical or horizontal position.
- Voltage regulation, surge suppression and long-lasting battery support
- Suppors entry-level PC's or single VCR/DVR components during blackouts
- Regulates brownouts and overvoltages from 75V to 147V back to usable levels without using battery power.
- 8 UPS battery-supported outlets
- Included DB9 and USB monitoring ports and cables enable unattended shutdown in case of extended power failure.
- HID-compliant USB port enables integration with built-in power management and auto shutdown in case of extended power failure.
- PowerAlert software available via free download
- Set of phone/network protection jacks protects a single dialup/DSL phone line or network Ethernet connection.
- 1200VA/700W power handling ability supports a variety of sensitive computer, home theater and other equipment
- 4 minute full load runtime (1200VA/700W); 12 minute half-load runtime. (600VA/350W)
- Cabinet adapts to tower or rackmount shelf format. Rackmount installation brackets for 2RU installation included
- 3-year product
- Output
- Output Volt Amp Capacity: 1200VA
- Output kVA Capacity: 1.2kVA
- Output Watt Capacity: 700W
- Nominal Output Voltage Supported: 115V; 120V
- Frequency Compatibility: 60Hz
- Output Voltage Regulation (line mode): -18%, +8%
- Output Voltage Regulation (battery mode): 115V (+/-5%)
- Built-in UPS output receptacles: 8 5-15R outlets
- Output AC waveform (AC mode): Sine wave
- Output AC waveform (battery mode): PWM sine wave
- Input
- Rated Input Current (at maximum load): 7A
- Nominal Input Voltage Supported: 120VAC
- UPS Input Connection Type: 5-15P; Space saving right angled input plug
- Input Circuit Breaker: 10A
- UPS Input Cord Length: 6'
- Recommended Electrical Service: 15A, 120V
- Battery
- Full Load Runtime: 4 minutes (700W)
- Half Load Runtime: 12 minute (350W)
- DC System Voltage: 24VDC
- Battery Recharge Rate: less than 4.5 hours from 10% to 90%
- Voltage Regulation
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75V-147V
- Overvoltage Correction: Input Voltages between 128V and 147V are reduced by 12%
- Undervoltage Correction: Input voltages between 93V and 107V are boostedby 14%
- LEDs, Alarms & Switches
- LED Indicators: Front Panel LCD display
- Front Panel LED display: Backlighted LCD screen indicates input voltage, 5-bar battery charge level, overload, AVR, on battery and replace battery status, LCD screen rotates for rack/tower viewing.
- Alarms: Audible alarm idicates power-failure, low-battery and overload status; alarm can be disabled using PowerAlert software.
- Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
- Switches: Two switches control off/on power status andalarm-cancel/self-test operation; dimmer switch controls LCD brightness
- Surge/Noise Suppression
- UPS AC Suppression Rating: 480 joules
- UPS AC Suppression Response Time: Instantaneous
- UPS Dataline Suppression: 1 line TEL / DSL or 10 base T Ethernet protection
- EMI/RFI AC Noise Suppression: Yes
- Communications
- Communications Interface: USB (HID enabled); DB9 Serial
- Network Monitoring Port: Supports detailed monitoring of UPS and site power conditions.
- Communications Cable: USB and DB9 serial cabling included
- WatchDog Compatibility: Supports Watchdog application, OS and hard-rebootrestart options for remote applications
- Line/Battery Transfer
- Transfer time: 2-4 milliseconds
- Low Voltage Transfer to Battery Power (setpoint): 75V
- High Voltage Transfer to Battery Power (setpoint): 147V
