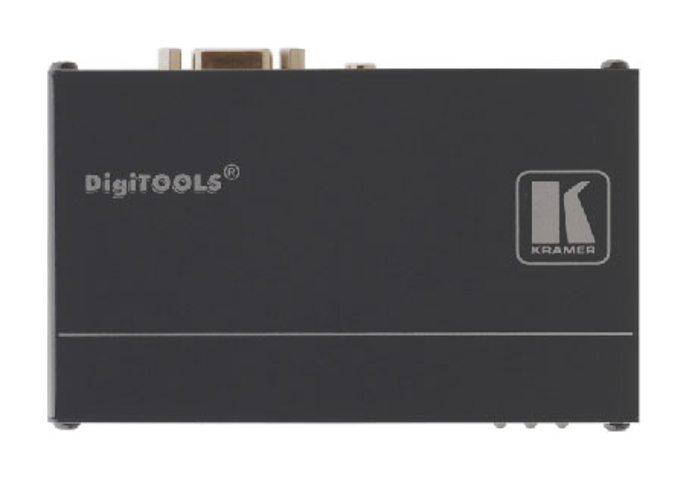

Kramer TP-574
HDMI, Bidirectional RS-232 & IR Over Twisted Pair Receiver

OUR PART #:  TP-574

Kramer's TP-574 is a twisted pair receiver for HDMI, bidirectional RS-232 and infrared signals.
Learn More
Our Price: $180.00
List Price: $225.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer TP-574
Qty:
In Stock

Similar Products

Kramer's TP-574 is a twisted pair receiver for HDMI, bidirectional RS-232 and infrared signals.  The TP-573 converts the input signals to a twisted pair signal and the TP-574 converts it back to HDMI, RS-232 and infrared signals.

Kramer TP-574 Features:

  • Max. Data Rate - 1.65 Gbps
  • HDTV Compatible
  • HDCP Compliant.
  • HDMI Support - HDMI (V.1.4 with Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD)
  • 3D Pass-Through
  • EDID PassThru - Passes EDID/HDCP signals from source to display
  • Bidirectional RS-232 & IR Interface. - 38400 maxbaud rate
  • System Range - Up to 90m (295 ft) at 1080i, or up to 30m (98 ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295 ft) at 1080i, or up to 70m (230 ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330 ft) at 1080i or up to 90m (295 ft) at 1080p on shielded BC-DGKat723 cable.
  • Cable - Requires shielded twisted pair (STP) cable.For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
  • Power Connect System™ - A single connection to the transmitter powers both units
  • Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rackspace with the optional RK-3T rack adapter

Kramer TP-574 Specifications:

  • Inputs: 1 CAT 5 IN on an RJ-45 connector
  • Outputs: 1 HDMI connector, 1 bidirectional IR port on a 3.5mm mini jack, 1 bidirectional RS-232 port on a 9-pin D-subconnector
  • Bandwidth: Supports up to 1.65Gbps bandwidth per graphic channel
  • Compliance with HDMI Standard: Supports HDMI and HDCP
  • Power Source: 12V DC from TP-573
  • Dimensions (WxDxH): 4.76" x 2.83" x 0.95" (12.1 x7.18 x 2.42 cm)
  • Approximate Weight: 0.67 lb (0.3 kg)
  • Accessories: 12V DC power supply
  • Options: RK-3T 19" rack mount, Kramer remote external receiver, Kramer BC DGKat524 (CAT 5 24AWG) and BC DGKat623 (CAT 6 23AWG) cables
