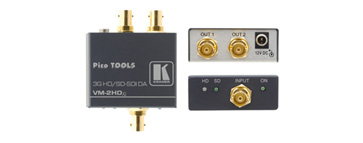

Kramer VM-2HDXL
1:2 3G HD-SDI Distribution Amplifier

OUR PART #:  VM2HDXL

The VM-2HDxl is a high-performance distribution amplifier for 3G HD-SDI signals.
Learn More
Our Price: $392.00
List Price: $490.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VM-2HDXL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VM-2HDxl is a high-performance distribution amplifier for 3G HD-SDI signals. The unit takes one input, provides reclocking and equalization and distributes the signal to two identical outputs.

Features:

  • Max. Data Rate - 3Gbps.
  • HDTV Compatible.
  • Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) & 3G HD-SDI (SMPTE 424M).
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • HD-SDI & SDI Input Indication LEDs.
  • Ultra Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.

Specifications:

  • Input: 1 SMPTE-259M/292M/344M/424M serial video, 75? on a BNC connector.
  • Outputs: 2 equalized and reclocked SMPTE-259M/292M/344M/424M outputs 75? on BNC connectors.
  • Maximum Data Rate: 2.97Gbps.
  • Maximum Output Level: 800mVpp/75Ohm.
  • Coupling: AC.
  • Power Source: 12V DC, 250mA.
  • Dimensions: 2.45" x 2.06" x 0.95" (6.22cm x 5.24cm x 2.41cm) W, D, H.
  • Weight: 0.31 lbs (0.14 kg) approx.
  • Accessories: Power supply, mounting bracket.
  • Options: RK-4PT 19" rack adapter, BC-1X cable.
