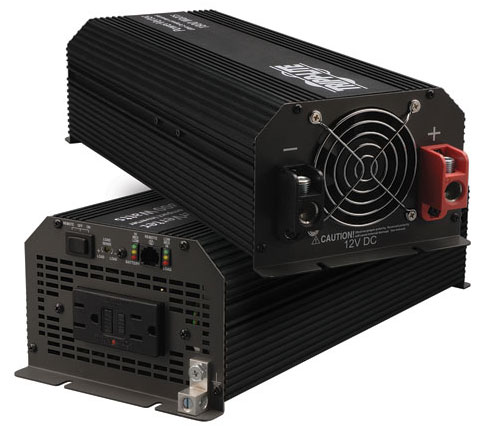

Tripp Lite PV1800GFCI
Ultra-Compact Inverter, 1800W, 12VDC to 120VAC, 2 Outputs


Our Price: $359.80
List Price: $514.00
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 1800 watts of 120V AC power to 2 GFCI protected AC outlets from any 12V battery or automotive DC source. Includes a set of nut-and-bolt style DC terminals for simple installation. Super-compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level.

Key Features

  • Allows users to run AC appliances from a properly sized 12V battery or automotive DC system
  • Converts 12V DC battery power to 120V AC power
  • 1800W continuous output power, 3600W peak output power (instantaneous)
  • 2 GFCI protected outlets (Ground Fault Circuit Interrupter)
  • Ultra-compact, lightweight design with grooved surface for efficient cooling, all-metal housing
  • Diagnostic LEDs indicate low batter voltage level and load level
  • Low battery alarm with auto-shutoff prevents deep battery discharge
  • High-efficiency operation conserves batteries to prolong run time
  • Cooling fan regulates internal temperature and prolongs unit service life
  • Remote Control Capability
  • RoHS compliant


  • Frequency Compatibility: 60Hz
  • Output Volatge Regulation: Maintains PWM sine wave output voltage of 115VAC (+/- 8VAC)
  • Output Frequency Regulation: 60Hz (+/-3Hz)
  • Overload Protection: Automatic overload protection shuts down inverter system in the event of overloads
  • Outlet quantity/type: 2 AC outlets (GFCI protected)


  • Recommended Electrical Service: Requires 12VDC input source capable of delivering 200A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 250A battery fusing is recommended
  • Maximum Input amps/watts: Full continuous load - 200A at 12VDC, No load - 2.7A at 12VDC, Shutdown
  • Input Connection Type: Set of 2 DC bolt-down wiring terminals. User supplies cabling, minimum gauges for full load operation: 0 (16ft max), 00 or 2/0 (20ft max)

LED Alarms & Switches

  • Dual-function alarm indicates overload conditions or low DC input voltage of 10.5V or less.


  • Shipping Weight: 8lbs
  • Cooling Method: Fan
  • Unit Dimensions: 4 x 6 x 15
  • Material of Construction: Aluminum / Sheet Metal
  • Form Factors Supported: Mounting slots enable permanent placement of inverter on any horizontal surface
