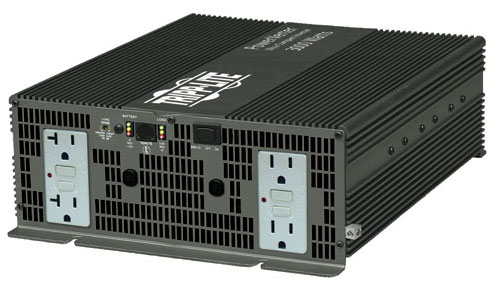

Tripp Lite PV3000GFCI
PowerVerter Plus 3000W Heavy-Duty Inverter with 4 GFCI Outlets

OUR PART #  PV3000GFCI

Our Price: $686.00
List Price: $980.00
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 3000 watts of 120V AC power to 4 AC GFCI protected outlets from any 12V battery or automotive DC source. Includes a PV remote and 25 feet of cable. Super-compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level.  Conforms to OSHA 1926.404 (b) (1) (ii).

Key Features

  • Converts DC power into 3000 watts of continuous 120V AC power
  • 15- and 20-amp outlets provide 120V AC power
  • Includes "Battery Saver" low voltage alarm/shutdown
  • Heavy-duty DC input terminals assure solid connection to battery. Dual connections provide high wattage to support heavy equipment loads.
  • Operating mode switch controls inverter operation.
  • Remote control jack provides optional remote monitoring and control (when used with FREE, included LED/switch module)
  • Remote Control LED/Switch Module controls and monitors your inverter from virtually anywhere within your vehicle with use of included extra-long cable. Allows multiple mounting options, including behind or below a dashboard or compartment. Features daisy-chain capability
  • Battery charge level LEDs indicate the approximate charge level (high/medium/low) of connected batteries
  • Connected load level LEDs indicate the approximate wattage load level (high/medium/low) of connected equipment
  • Sturdy extruded aluminum case stands up to the toughest work environments
  • Battery conservation charge dial conserves battery power by setting the low-load level at which the inverter automatically shuts off
  • Cooling fans provide cooler operation, lengthening inverter service life
  • Circuit breakers guard the inverter against potentially damanging equipment overload
  • Mounting flanges provide safe, fixed installation
  • Grooved cooling surface provides additional surface area for more efficient cooling
  • Grounding lug connects to vehicle ground

Output

  • Frequency Compatibility: 60Hz
  • Output Watts: 3000
  • Continuous Output Capacity: 3000 Watts
  • Peak Output Capacity: 6000 Watts
  • Output Nominal Voltage: 120V
  • Output Voltage Regulation: Maintains PWM sine wave output voltage of 115VAC (+/-8VAC)
  • Output Frequency Regulation: 60Hz (+/- 3Hz)
  • Overload Protection: Automatic overload protection shuts down inverter system in the event of overloads. Output is protected by 2 built-in 20A circuit breakers (each controlling power to 2 outlets). Inverter and electrical system are protected via set of 6 40A automotive input fuses.
  • Outlet quantity / type: 4 AC outlets (GFCI Protected)

Input

  • Recommended Electrical Service: Requires 12VDC input source capable of delivering 286A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 500A battery system fusing is recommended.
  • Maximum Input Amps: 286A (Full continuous mode - 286A at 12VDC, no load - 1.5A at 12VDC, Shutdown / load sense mode - less than 100 microamps)
  • Input cord length details: User supplies cabling. Minimum gauges for full load operation: 0(10' max), 00 or 2/0(13' max), Twinn 00 using 4 conductors (26ft)

LED's Alarms & Switches

  • Alarms: Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less.
  • Switches: 3 position rocker switch enables on/off power control, plus remote setting which enables inverter to be remotely powered on or off when used in conjuction with APSRM4 module

Physical

  • Weight: 12.2lbs
  • Shipping Dimensions: 4.3" x 12.5" x 14.8"
  • Cooling Method: Fan
  • Material of Construction: Aluminum / Sheet Metal
  • Form Factors Supported: Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information).



Click to download

Tripp Lite PV3000GFCI
PowerVerter Plus 3000W Heavy-Duty Inverter with 4 GFCI Outlets

OUR PART #  PV3000GFCI

Product Information:

Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 3000 watts of 120V AC power to 4 AC GFCI protected outlets from any 12V battery or automotive DC source. Includes a PV remote and 25 feet of cable. Super-compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level.  Conforms to OSHA 1926.404 (b) (1) (ii).

Key Features

  • Converts DC power into 3000 watts of continuous 120V AC power
  • 15- and 20-amp outlets provide 120V AC power
  • Includes "Battery Saver" low voltage alarm/shutdown
  • Heavy-duty DC input terminals assure solid connection to battery. Dual connections provide high wattage to support heavy equipment loads.
  • Operating mode switch controls inverter operation.
  • Remote control jack provides optional remote monitoring and control (when used with FREE, included LED/switch module)
  • Remote Control LED/Switch Module controls and monitors your inverter from virtually anywhere within your vehicle with use of included extra-long cable. Allows multiple mounting options, including behind or below a dashboard or compartment. Features daisy-chain capability
  • Battery charge level LEDs indicate the approximate charge level (high/medium/low) of connected batteries
  • Connected load level LEDs indicate the approximate wattage load level (high/medium/low) of connected equipment
  • Sturdy extruded aluminum case stands up to the toughest work environments
  • Battery conservation charge dial conserves battery power by setting the low-load level at which the inverter automatically shuts off
  • Cooling fans provide cooler operation, lengthening inverter service life
  • Circuit breakers guard the inverter against potentially damanging equipment overload
  • Mounting flanges provide safe, fixed installation
  • Grooved cooling surface provides additional surface area for more efficient cooling
  • Grounding lug connects to vehicle ground

Output

  • Frequency Compatibility: 60Hz
  • Output Watts: 3000
  • Continuous Output Capacity: 3000 Watts
  • Peak Output Capacity: 6000 Watts
  • Output Nominal Voltage: 120V
  • Output Voltage Regulation: Maintains PWM sine wave output voltage of 115VAC (+/-8VAC)
  • Output Frequency Regulation: 60Hz (+/- 3Hz)
  • Overload Protection: Automatic overload protection shuts down inverter system in the event of overloads. Output is protected by 2 built-in 20A circuit breakers (each controlling power to 2 outlets). Inverter and electrical system are protected via set of 6 40A automotive input fuses.
  • Outlet quantity / type: 4 AC outlets (GFCI Protected)

Input

  • Recommended Electrical Service: Requires 12VDC input source capable of delivering 286A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 500A battery system fusing is recommended.
  • Maximum Input Amps: 286A (Full continuous mode - 286A at 12VDC, no load - 1.5A at 12VDC, Shutdown / load sense mode - less than 100 microamps)
  • Input cord length details: User supplies cabling. Minimum gauges for full load operation: 0(10' max), 00 or 2/0(13' max), Twinn 00 using 4 conductors (26ft)

LED's Alarms & Switches

  • Alarms: Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less.
  • Switches: 3 position rocker switch enables on/off power control, plus remote setting which enables inverter to be remotely powered on or off when used in conjuction with APSRM4 module

Physical

  • Weight: 12.2lbs
  • Shipping Dimensions: 4.3" x 12.5" x 14.8"
  • Cooling Method: Fan
  • Material of Construction: Aluminum / Sheet Metal
  • Form Factors Supported: Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information).



Click to download
