Xantech ML85
LCD/CFL Proof Micro Link IR Receiver


Call for price! Not available online.

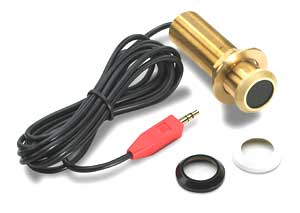

The Micro Link IR Receiver is a small peep-hole style infrared repeater assembly. The Micro Link IR Receiver is equipped with a 7-foot cable and a 3.5mm stereo mini plug, which is plugged directly into the “IR RCVR” jack on the connecting block, such as the models 789-44, CB60, and 791-44. The Micro Link IR Receiver is primarily intended for use in installations where the connecting block is within reach of its 7-foot cable – as when installing the Micro Link IR Receiver in a cabinet where the controlled equipment is behind closed doors.


  • Small size; mounts in 1/2" diameter hole.
  • Quick-connect 3.5 mm stereo mini plug on 7' cable for direct plug-in to Xantech connecting blocks.
  • Works in normal 3-wire mode (12VDC, IR, GND)
  • Green talkback LED for system varification


  • Infrared Modulation Frequency Bandwidth: 30-60kHz
  • IR reception range: Up to 80', depending on remote control output strength and ambient conditions
  • Reception Angle: 55 degrees off axis for 50% range reduction
  • Cable Requirements: 3-conductor. Use 24 gauge up to 200', 22 gauge up to 600', 20 gauge up to 2,000' and 18 gauge up to 5,000'
  • Maximum Transmission Length: 1 mile using 18 gauge wire.
  • Maximum Current Output: 100mA
  • Drives IR emitters through Xantech connecting blocks, controllers, etc.
  • Dimensions: 1/2" diameter x 2" deep
  • Power Requirements: +12VDC, 20mA
