OUR PART # SPC82JT
The Whirlwind SPC8x series of passive microphone splitters are the ideal, expandable solution for permanent installations.
Each unit provides 8 channels of mic level splitting circuitry in a single rack space unit. Depth is 7.5" including tie bar. All connections are made via removable Phoenix style connectors - cable end connectors are included. A set of dip switches is provided for each ISO output for lifting the ground connection between input and ISO output. Rear tie-bar is provided for attaching cables securely to avoid accidental disconnects.
The SPC82JT model has 1-direct and 1-isolated output with Jensen transformer and passes phantom power from direct in to direct out.

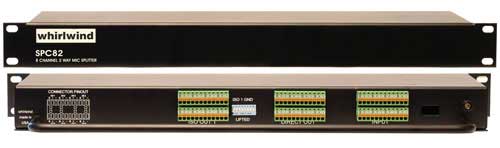

[Similar model pictured above]
