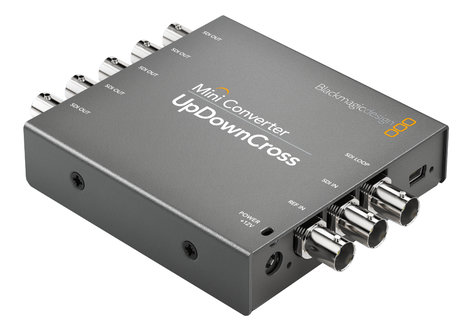

Blackmagic Design CONVMUDC
UpDownCross Mini Converter

OUR PART #:  CONVMUDC

Blackmagic Design's UpDownCross Mini Converter includes both up, down and cross conversion as well as a 4 field standards converter.
Learn More
UpDownCross Mini Converter - Top View
UpDownCross Mini Converter - Bottom View

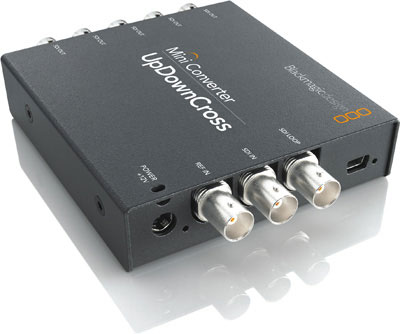

UpDownCross Mini Converter

Click a thumbnail to see more images. (5 total)

Our Price: $280.25
List Price: $295.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design CONVMUDC
Qty:
In Stock

Similar Products

Blackmagic Design's UpDownCross Mini Converter includes both up, down and cross conversion as well as a 4 field standards converter. Fantastic for placement on deck SDI inputs, so you always get NTSC or PAL into the deck. Use the cross converter to convert 720p to 1080i or 1080i to 720p so you can edit once and master in SD, 720p and 1080i video.

Specifications:

Connections

  • SDI Video Input: Switchable between SD, HD and 3 Gb/s SDI.
  • SDI Video Output: 6 x outputs automatically match the SD, HD and 3Gb/s SDI video input unless up, down, cross and/or standards conversion isenabled.
  • Analog Video: None
  • Analog Audio: None
  • AES/EBU Digital Audio: None
  • Reference Input: Blackburst and TriSync for SD & HD.
  • Multi Rate Support: Auto detection of HD or standard definition SDIinputs.
  • Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
  • Reclocking: Yes

Standards

  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 andITU-R BT.601.
  • SDI Video Rates: SDI video connections are switchable betweenstandard definition and high definition.
  • SDI Video Sampling: 4:02:02
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24bit.
  • SDI Color Precision: 4:02:02
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and3 Gb/s SDI.
  • SDI Format Support: 625/25 PAL, 525/29.97 NTSC, 720p50, 720p59.94,720p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94,1080i60.
  • Analog Format Support: None
  • Analog Color Space: None
  • Analog Color Precision: None

Extras

  • Software Control: None
  • Internal Software Upgrade: Via included updater application.
  • Settings Control: Mini Switches
  • Format Conversion: Up, down, cross conversion and/or NTSC/PALstandards conversion.
  • Power Supply: +12V universal power supply included with internationalsocket adapters for all countries. Cable tie point.
  • Power Consumption: 7.00 Watts
  • Operational Voltage Range: 12V - 30V
  • Product Warranty: 3 Year Limited Manufacturer's Warranty
