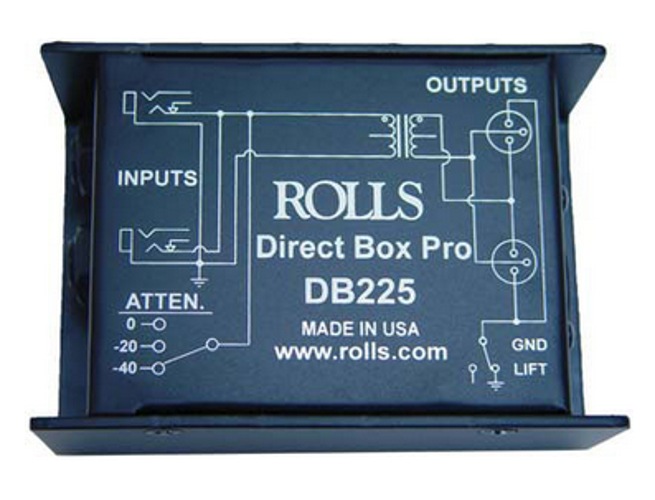

Rolls DB225
Transformer Balanced, Passive Professional Direct Box

OUR PART #  DB225

Our Price: $79.00
List Price: $105.00
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Rolls' DB225 is a transformer balanced, passive professional direct box.  It features a Ground Lift switch for hum elimination, and an Attenuator switch for padding the input signal from -20 or -40dB.  Padding the input signal provides a way to connect the DB225 to a line level signal, even a speaker level signal and connecting it to a balanced line or Mic input on a mixer.  The two 1/4" inputs are paralleled pass-through to also send the input signal to a tuner, pre amp, etc.

Features:

  • Attenuator switch to select the exact level you want
  • Ground lift switch to help eliminate ground loops
  • Very heavy all metal chassis
  • Small compact size

Specifications:

  • Input(s): 1/4" unbalanced jacks for receiving line or instrument level signals
  • Output(s): XLR male and female for connection to a mixer board or other balanced input device
  • Ground lift switch: In the lift position, the ground connection to the XLR jack is disconnected from the chassis
  • Attenuator switch: Reduces the input signal by the amount indicated
  • Frequency response: 20Hz - 20kHz + - 1dB
  • Output impedance: 600 ohms
  • Input Impedance: 50K ohms
  • Max output level: +4 dBm
  • Weight: 1 lb (0.45 kg)
  • Size 4.15" L x 2.75" x 1.55"

Rolls DB225
Transformer Balanced, Passive Professional Direct Box

OUR PART #  DB225

Product Information:

Rolls' DB225 is a transformer balanced, passive professional direct box.  It features a Ground Lift switch for hum elimination, and an Attenuator switch for padding the input signal from -20 or -40dB.  Padding the input signal provides a way to connect the DB225 to a line level signal, even a speaker level signal and connecting it to a balanced line or Mic input on a mixer.  The two 1/4" inputs are paralleled pass-through to also send the input signal to a tuner, pre amp, etc.

Features:

  • Attenuator switch to select the exact level you want
  • Ground lift switch to help eliminate ground loops
  • Very heavy all metal chassis
  • Small compact size

Specifications:

  • Input(s): 1/4" unbalanced jacks for receiving line or instrument level signals
  • Output(s): XLR male and female for connection to a mixer board or other balanced input device
  • Ground lift switch: In the lift position, the ground connection to the XLR jack is disconnected from the chassis
  • Attenuator switch: Reduces the input signal by the amount indicated
  • Frequency response: 20Hz - 20kHz + - 1dB
  • Output impedance: 600 ohms
  • Input Impedance: 50K ohms
  • Max output level: +4 dBm
  • Weight: 1 lb (0.45 kg)
  • Size 4.15" L x 2.75" x 1.55"
