Radio Design Labs TX-A2D
2 Channel Balanced to Unbalanced Stereo Audio Converter

OUR PART #  TX-A2D

Our Price: $108.62
List Price: $145.31
You save 25%! (Low Price Guarantee)
In Stock

Recommended Accessories

Radio Design Labs' TX-A2D is the ideal choice in installations requiring passive isolation and level attenuation between a professional balanced line-level stereo source and consumer equipment unbalanced inputs.

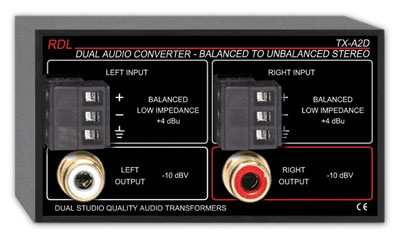

The TX-A2D is a complete unbalanced stereo line-level audio output module.  The front panel provides a detachable terminal block for connecting each channel of a balanced +4 dBu audio source.  The input signals are coupled to two front-panel gold plated phono jacks through studio-quality isolation transformers.  Each output is coupled through an attenuation network that produces a nominal -10 dBV level. Shielding is provided by the TX-A2D’s heavy duty aluminum enclosure.

Wherever professional format audio signals need to be converted to an unbalanced line level, the TX-A2 and TX-A2D are an ideal choice.  Use them individually or in conjunction with other RDL products as part of a complete audio/video system.

Radio Design Labs TX-A2D Features:

  • Unbalanced Audio Outputs from a Stereo Balanced Line
  • Balanced to Unbalanced Conversion
  • Stereo Input to Stereo Output
  • +4 dBu Input Level to -10 dBV Output Level
  • Studio-Quality Transformer Isolation
  • Passive Converter with Output Jacks

Radio Design Labs TX-A2D Specifications:

  • Input connector 2: Detachable terminal block
  • Input level: +4 dBu nominal; +22 dBu max
  • Output connectors (2): Gold plated phono jacks
  • Output level: -10 dBV nominal
  • Frequency response (line level): 20 Hz to 20 kHz (±0.5 dB)
  • Crosstalk: <-80 dB (20 to 20 kHz, ref. -10 dBV); <-90 dB (1 kHz)
  • Total Harmonic Distortion: <0.05% (20 Hz to 20 kHz, +4 dBu input);<0.01% (1 kHz)
  • Dimensions: 2.4" H x 3" L x 1.6" W (6.1 x 7.6 x 4.04 cm)
