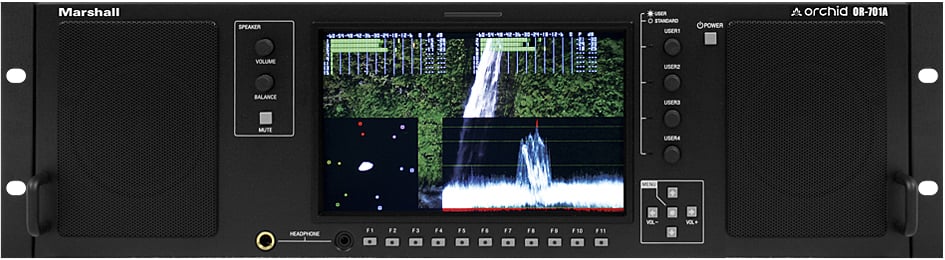

Marshall Electronics OR-701A ORCHID Series
3RU Dual Input A/V Monitor (with 7" Screen, Stereo Speakers)

OUR PART #:  OR-701A

Taking the same multi-function waveform and Vectorscope features found in Marshall's OR-702...
Learn More
Our Price: $2,702.50
List Price: $3,180.00
You save 15%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics OR-701A ORCHID Series
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Taking the same multi-function waveform and Vectorscope features found in Marshall's OR-702, the Marshall Electronics' ORCHID® Series OR-701A then adds full-range audio speakers and a vertical audio bar layout for real-time audio monitoring. Any two of the 16 audio channels being de-embedded from the HDSDI source may be monitored through the built-in speakers. The same audio is available from balanced XLR outputs on the rear panel, along with the two front panel headphone jacks (3.5mm and 1/4').  Each audio output has its own level control.  The front panel speakers have Volume, Balance and Mute controls that operate separately from the rear panel line and front panel headphone outputs.

The OR-701A is 3RU and has 11 user-assignable function keys as well as 4 user-assignable rotary encoders.  This unit also utilizes a 5 button menu system.  The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen.  The built-in Vectorscope displays in full color and can also be displayed in three different ratios.  The Vectorscope has adjustable gain from 1x to 5x.  All screens are color matched at the factory and can be auto-adjusted in the field using an optional color probe system.  The 64-segment tri-color bar graph meters have user-adjustable reference levels.  The OR-701A comes standard with auto-sensing HDSDI inputs, re-clocked output, and an open modular slot for additional input options.

Waveform Monitor
The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in various aspect ratios, positions, and transparency options. The Waveform Monitor not only monitors luminance, but can also warn the user for out-of-range conditions such as overexposure or "blacker-than-black" errors with fully user-adjustable warning limits.

Real-Time Color Vectorscope
The built-in Vectorscope allows users to monitor color gamut range in real time. It displays in full color and can also be displayed in various sizes, positions, and transparency options. The Vectorscope has adjustable gain from 1x to 5x.

Clip Guide
The Clip Guide function operates with both the Waveform display and Monochrome/Color picture display. Both the upper and lower Clip Guide levels are user-adjustable in order to accurately display over-and-under exposures during different shooting conditions. For example, the upper Clip Guide limit may be set to 85 IRE and the lower limit to 10 IRE. With these settings, any exposures over the set limit of 85 IRE will display red on both the Waveform and picture (if selected). The same will be true for blacks under 10 IRE.

Precision Gamma
It is important that LCD monitors match the color and gamma characteristics of a CRT monitor. To emulate CRT gamma, the non-linear curves are corrected by software algorithms. This process is complicated because the three non-linear colors (RGB) should be corrected simultaneously. The ORCHID gamma correction overcomes this problem and ensures correct matching between panels and channels.

Audio Level Meters
De-embeds and displays up to 16 channels of audio using sixteen 64-segment tri-color Audio Meters with user-adjustable reference levels. The Audio Level Meters provide numerical indicators and headroom levels, as well as peak hold function. Audio Channel Loss Warning prevents errors during monitoring.

Front And Rear Panel Audio Output
Monitor any two channels at once through the front audio output jack or rear line output jack.

Large "On Air" Tally
• Follows Red tally command
• High / Low Intensity setting
• Easy to see from long distances

Extensive Menu System
• 9 user-assignable function keys
• Rotary dial
• Easy menu navigation

White Balance
White balance adjustment is essential in order to render colors correctly. To display colors correctly, gray scale should maintain identical color temperature. The white balance for ORCHID monitors defaults to D65 (6500K) so the user does not need to adjust white balance. LCD monitors have color-matching issues because white balance can be affected by a change in luminance level. Our unique color management system solves this problem.

One-Button Color Calibration
The ORCHID operating system includes an Automatic White Balance function that allows a "One Button" calibration procedure when used with a Konica Minolta CA-210 color analyzer. All ORCHID Series LCD panels are calibrated at the factory to ensure color conformity between screens.

Marshall Electronics OR-701A ORCHID Monitor Features:

  • Full Range Stereo Speakers
  • Real-Time Waveform Monitor
  • Real-Time Color Vectorscope
  • Sixteen 64-segment Tri-color Audio Meters
  • Tri-Color Tally Indicator
  • On-Screen Time Code
  • 7 assignable GPI Inputs
  • Adjustable Color Temperature
  • Optional Input Modules
  • Front Panel Headphone Jacks
  • Rear Balanced +4 Stereo Outputs
  • Adjustable Clipping Indicator
  • Precision Gamma Settings
  • Adjustable Color Temperature
  • Variety of Safety Markers
  • HDSDI / SDI Inputs and Outputs
  • Auto White Balance Calibration - Compatible with Konica Minolta CA-210 Color Analyzer

Marshall Electronics OR-701A ORCHID Monitor Specifications:

  • Display (Viewing Area): 7"
  • Resolution: 800 x 480
  • Brightness (in cd/m²): 350
  • Contrast Ratio: 400:1
  • Available Input Types: HD-SDI x 2 (auto sensing)
  • Output: HD-SDI (switched)
  • Option Input Slot: 1
  • Dimensions: 18.9"'W x 5.2"H x 2.38"D
  • Waveform: Small, Medium, Large, Full Screen
  • Vectorscope: Small, Medium, Large, Full Screen
  • Audio Bars: 4, 8, 16, Active only, Horizontal or vertical
  • Speakers: 2.5" x 2
  • Inputs: 16 Channels de-embedded from HDSDI data
    • Rear Panel: Stereo +4dBu XLR and 3.5mm -10dBu Line Outputs
    • Front Panel: 3.5mm and 1/4' Stereo Headphone outputs
  • SPL: 75dB SPL A-weighted 1 Meter
Input Module for Marshall Digital Audio Monitors, 4 Unbalanced AES/EBU Inputs
