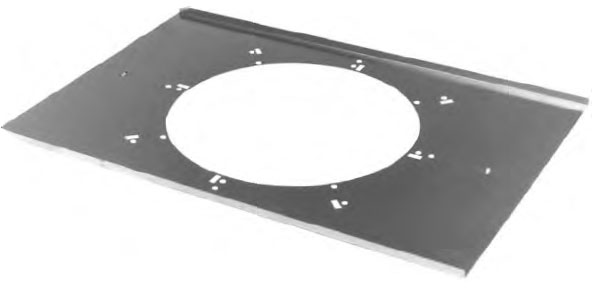

Lowell LBS8-CP 8" Speaker with Tile Bridge, Galvanized Steel, Round Opening

Tile bridge model LBS8-CP is engineered to distribute the weight of an 8" speaker assembly to the ceiling support system in a suspended 2' x 2' or 2' x 4' tile ceiling system. A tile bridge is often required by local building codes for safety reasons, as well as to reduce the potential of having unsightly sags in tile ceilings due to undistributed speaker weight. This tile bridge must be used with a backbox and is designed to mount grille/backbox combinations.

Features:

• Galvanized 20-gauge steel
• Formed construction, lightweight with rigid support
• 23.75"L x 16.25"W
• 12" dia. center opening with 2 wire-tie points for seismic anchoring, where required by code.
• Mounts 8" speaker with screw-mount grille and backbox.

Specifications:

• Outside Dimensions: 23.75" x 16.25"
• Center Opening: 12" diameter
• For Speaker Size: 8"

Note:

the tile bridge does not include hardware. Mounting bolts are typically included with Lowell speaker assemblies and grilles. To mount a speaker enclosure to the tile bridge, four 8- 32 bolts will be required.
