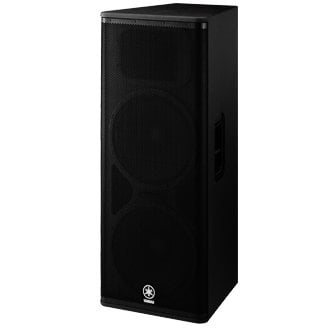

Yamaha DSR215
Dual 15" 2-way Active Loudspeaker

OUR PART #  DSR215-CA

Our Price: $1,199.99
List Price: $1,799.00
You save 33%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Yamaha DSR215 is a high-power, 2-way active loudspeaker system driven by a 1300W Class-D amplifier that give it the ability to output a 138dB maximum peak SPL.  It is designed for live sound applications that require simple setup and high SPL levels.  Featuring two cast frame 15" woofers, a neodymium compression driver with a large diameter 2" titanium diaphragm, it reproduces a wide frequency range, with contoured bass to extreme treble.

Main Features:

  • D-CONTOUR multi-band dynamic processing provides the ideal balance of dynamic sound with consistent clarity at any output level
  • 1300W Class-D amplifiers featuring a PFC switching-mode power supply help deliver maximum SPL up to 138dB
  • Premium-grade transducers
  • Wide Depression CD Waveguide Horns with 90 to 60 degree coverage
  • Locking IEC cable
  • Heavy duty 16-gauge steel grille

Specifications:

  • Frequency Range: 45Hz - 20kHz
  • Frequency Response: 55Hz - 18kHz
  • Crossover Type: FIR-X tuning (linear phase FIR filter)

Amplifier Class-D:

  • Power Rating: 1300W
  • Low-Frequency: 850W
  • High-Frequency: 450W
  • Cooling: Natural Convection
  • Controls: level control, line/mic switch, HPF switch, D-Contour switch, front LED disable, power switch
  • HPF Frequency: 120Hz (-6dB) 24dB/oct

Transducer:

  • Low-Frequency: 2 x 15' cone
  • Magnet: Ferrite
  • Voice Coil: 2.5" diameter
  • High-Frequency: 2" Titanium diaphragm compression driver
  • Magnet: Neodymium

Dimensions (WxHxD): 467x1158x520mm

Weight: 49.8kg (110lbs)



Cover For DSR215 SpeakerYamaha DSR215-COVER Cover For DSR215 Speaker

Soft cover with padding for the DSR215.  Provides protection with its padding, durable construction and has cutouts for the speaker's carrying handles.

Call for price! Not available online.

Yamaha DSR215
Dual 15" 2-way Active Loudspeaker

OUR PART #  DSR215-CA

Product Information:

The Yamaha DSR215 is a high-power, 2-way active loudspeaker system driven by a 1300W Class-D amplifier that give it the ability to output a 138dB maximum peak SPL.  It is designed for live sound applications that require simple setup and high SPL levels.  Featuring two cast frame 15" woofers, a neodymium compression driver with a large diameter 2" titanium diaphragm, it reproduces a wide frequency range, with contoured bass to extreme treble.

Main Features:

  • D-CONTOUR multi-band dynamic processing provides the ideal balance of dynamic sound with consistent clarity at any output level
  • 1300W Class-D amplifiers featuring a PFC switching-mode power supply help deliver maximum SPL up to 138dB
  • Premium-grade transducers
  • Wide Depression CD Waveguide Horns with 90 to 60 degree coverage
  • Locking IEC cable
  • Heavy duty 16-gauge steel grille

Specifications:

  • Frequency Range: 45Hz - 20kHz
  • Frequency Response: 55Hz - 18kHz
  • Crossover Type: FIR-X tuning (linear phase FIR filter)

Amplifier Class-D:

  • Power Rating: 1300W
  • Low-Frequency: 850W
  • High-Frequency: 450W
  • Cooling: Natural Convection
  • Controls: level control, line/mic switch, HPF switch, D-Contour switch, front LED disable, power switch
  • HPF Frequency: 120Hz (-6dB) 24dB/oct

Transducer:

  • Low-Frequency: 2 x 15' cone
  • Magnet: Ferrite
  • Voice Coil: 2.5" diameter
  • High-Frequency: 2" Titanium diaphragm compression driver
  • Magnet: Neodymium

Dimensions (WxHxD): 467x1158x520mm

Weight: 49.8kg (110lbs)



Cover For DSR215 SpeakerYamaha DSR215-COVER Cover For DSR215 Speaker

Soft cover with padding for the DSR215.  Provides protection with its padding, durable construction and has cutouts for the speaker's carrying handles.

Call for price! Not available online.
