Yamaha DSR112 12" 2-Way Active Stage Monitor, 1300W

OUR PART #: DSR112-CA

Copied to clipboard

Yamaha's DSR Series of active loudspeakers take full advantage of our expertise and experience amassed as one of the world's leading pro audio manufacturers. ...Read more

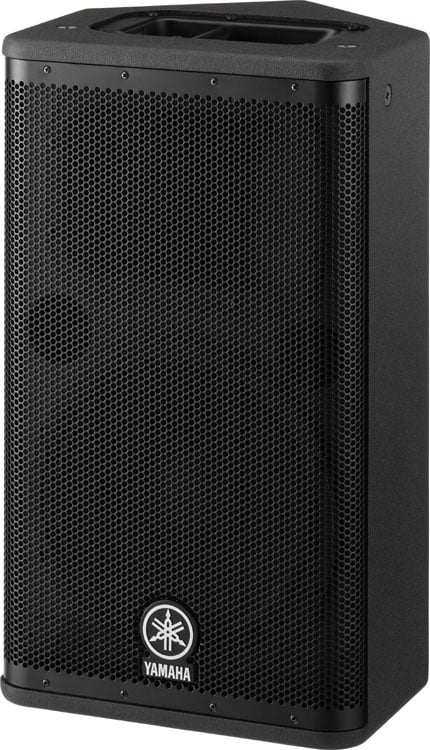

Yamaha DSR112 12" 2-Way Active Stage Monitor, 1300W Image 1
Yamaha DSR112 12" 2-Way Active Stage Monitor, 1300W
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Replacement Parts

Product Overview

Yamaha's DSR Series of active loudspeakers take full advantage of our expertise and experience amassed as one of the world's leading pro audio manufacturers.

The DSR Series feature an ideal combination of advanced digital sound processing and the latest acoustic technologies for Integral Digital Tuning, plus our all-new D-CONTOUR multi-band dynamic processing for Intelligent Dynamic Control. Furthermore, they harness our next-generation high power Class-D amplifiers, featuring PFC switching mode power supply for Powerful Digital Drive while power supply, amplifiers, and transducers are continuously monitored by Extensive DSP Protection.

These core elements give the DSR Series the capability to deliver class leading power, extreme sound pressure levels and a listening experience that re-defines high definition audio. For loudspeakers you can count on to deliver the musicality and sound that will thrill audiences night after night, let the DSR Series power your performances to incredible new heights.

Yamaha DSR112 Features:

  • 12" 2-way Active Loudspeaker
  • Advanced digital sound processing with 48-bit internal processing
  • D-CONTOUR (Dynamic-CONTOUR) multi-band dynamic processing
  • 1300W Class-D amplifiers with PFC switching mode power supply
  • Maximum SPL 134dB peak
  • Extensive protection of the transducers, amplifiers and power supply from high performance DSP
  • Performs as main PA or floor monitor
  • Integrated M10 rigging points

Yamaha DSR112 Specifications:

  • System Type: 12" 2-way, Bi-amp Powered Speaker, Bass-reflex Type
  • Frequency Range (-10dB): 55Hz ~ 20kHz
  • Frequency Response (-3dB): 60Hz ~ 18kHz
  • Coverage Angle: H90°×V60°
  • Crossover Type: FIR-X tuning (linear phase FIR filter)
  • Crossover Frequency: 1.7kHz
  • Measured Maximum SPL (peak) IEC noise @ 1m: 134dB SPL
  • Amplifier Type: Class-D
  • Power Rating: 1300W
  • Low-Frequency: 850W
  • High-Frequency: 450W
  • Cooling: Natural Convection
  • Controls: LEVEL control, LINE/MIC switch, HPF switch, D-CONTOUR switch, FRONT LED DISABLE switch, POWER switch
  • Indicators: PEAK: x1 (Red), LIMIT: x1 (Red), PROTECTION: x1 (Red), POWER:x1 (Green), FRONT: x1 (White), HPF:x1 (Orange), D-CONTOUR :x1 (Orange)
  • HPF Frequency: 120Hz (-6dB) 24dB/oct
  • Boost Type: D-CONTOUR (Dynamic CONTOUR)
  • Protection
  • Load:
    • POWER switch on/off: Mute
    • DC-fault: power supply shuts down automatically (reset manually)
    • Integral Power Protection: Limit the output (return automatically)
    • Clip limiting
  • Amplifier:
    • Thermal: Limit the output or Mute (return automatically)
    • Output through current: Amplifier shuts down automatically (reset manually)
  • Powersupply:
    • Thermal : Amplifier shuts down automatically (reset manually)
    • Over voltage: power supply shuts down automatically (resetmanually)
  • Connectors:
    • Input:
      • XLR-3-31 x1 (Balanced)
      • TRS Phone Jack x1 (Balanced)
    • Output:
      • XLR-3-32 x1 (Balanced)
      • Parallel connection with INPUT
    • Power: AC inlet x1
  • Power Consumption 1/8 Power: 100W
  • Dimension (WxHxD): 14 5/8" x 25 2/8" x 14 4/8" (370 x 638 x 368 mm)
  • Weight: 21.2kg (47lbs)
