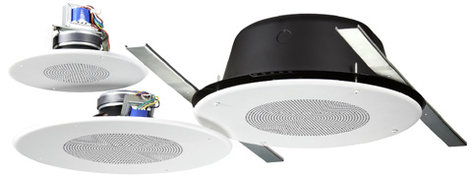

JBL CSS8018
200 mm Commercial Series Ceiling Speaker

OUR PART #:  CSS8018

JBL's Commercial Series Ceiling Speaker provide excellent performance for paging and background music application.
Learn More
Our Price: $34.00
List Price: $42.00
You save 19%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL CSS8018
Qty:
Similar Products

JBL's Commercial Series Ceiling Speaker provide excellent performance for paging and background music application.  High sensitivity across the product line provides maximum sound level, even at low tap settings.

Model CSS8018 is a high-powered 200mm (8 in) speaker with 97 dB sensitivity and a 10-Watt multi tap transformer.  The speaker's triple-voltage transformer provides versatility by allowing use on 100V, 70V, or 25V distributed loudspeaker lines.

The drivers feature a full 25mm (1 in) diamter voice coil with a Kapton coil-former and high-temperature wire for better power dissipation and long-term reliability.

JBL CSS8018 Features:

  • Very high 97 dB sensitivity
  • 10 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • Fits CSS-BB8 backcan

JBL CSS8018 Specifications:

  • Driver Size (dual-cone): 200 mm (8 in)
  • Frequency Range (-10 dB) Driver/Grille Assembly: 50 Hz – 17 kHz
  • Installed in CSS-BB backcan: 90 Hz – 17 kHz
  • Coverage (2 kHz): 110°
  • Driver Continuous Power Handling: 20 Watts
  • 100V Taps: 10W, 5W, 2.5W
  • 70V Taps: 10W, 5W, 2.5W, 1.3W
  • 25V Taps: 10W, 5W, 2.5W, 1.3W
  • Transformer Insertion Loss: 1.5 dB Maximum
  • Transformer Connection: Bare wire
  • Motor Mass: 283 g (10 oz)
  • Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
  • Matching CSS Backcan: CSS-BB8 (0.15 cu ft)
  • Other Compatible Backcans:
    • MTC-81BB8 (0.26 cu ft)
    • MTC-200BB6 (0.5 cu ft)
    • MTC-300BB8 (1.0 cu ft)
  • Bolt Mounting Circle to Backcan: 4 points on 286 mm (11.25 in) diameter
  • Cutout Diameter Open-back: 216 mm (8.5 in)
  • In CSS-BB backcan: 295 mm (11.7 in)
  • Depth (behind grille): 73 mm (2.9 in)
  • Grille Diameter: 327 mm (12.9 in)
  • Net Weight (ea): 1.58 kg (3.5 lb)
  • Shipping Weight (ea): 2.25 kg (5.0 lb)
  • Included Accessories: 4 pcs M4 x 40 mm sheet metal screws for attachingspeaker/driver/transformer assembly to corresponding backcan.
Backcans for CSS8008 or CSS8018 Speakers
JBL CSS-BB8x6 Backcans for CSS8008 or CSS8018 Speakers
The JBL CSS-BB8X6 is a 8" backcan for CSS8008 or CSS8018 speaker. JBL CSS-BB8X6 Specifications: Compatibility: CSS-8008 and CSS-8018 speaker,CSS-TR4/8 tile railsDimensions: 108 deep x 334 diameter mm (4.3 x 13.2 in)Bolt Mount Circle: 4 ...
94.00

In Stock
Free Shipping Available
Tile Rails for CSS-BB4x6 and CSS-BB8x6 Backcans
JBL CSS-TR4/8X12 Tile Rails for CSS-BB4x6 and CSS-BB8x6 Backcans
The JBL CSS-TR4/8x12 are tile rails for CSS-BB4x6 and CSS-BB8x6 backcans.JBL CSS-TR4/8x12 Specificiations: Compatibility: CSS-BB4 and CSS-BB8 backcans Dimensions: 600 x 36 x 8 mm (23.6 x 1.4 x 0.3 in) Bolt Mount Circle: N/A Air ...
28.00

In Stock
