200 mm Commercial Series Ceiling Speaker

OUR PART #:  CSS8008

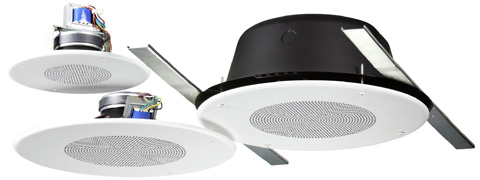

The JBL CSS8008 is a 200 mm (8 in) commercial series ceiling speaker.
Learn More
Our Price: $25.00
List Price: $31.00
You save 19%!
Write the first review.

This product must be purchased in multiples of 2

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price



Similar Products

The JBL CSS8008 is a 200 mm (8 in) commercial series ceiling speaker. JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

JBL CSS8008 Features:

  • High 96 dB sensitivity
  • 5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • 120° conical coverage
  • Fits CSS-BB8 backcan

JBL CSS8008 Specifications:

  • Driver Size (dual-cone): 200 mm (8 in)
  • Installed in CSS-BB backcan: 100 Hz – 16 kHz
  • Coverage (2 kHz): 120°
  • Driver Continuous Power Handling: 15 Watts
  • 100V Taps: 5W, 2.5W, 1.3W
  • 70V Taps: 5W, 2.5W, 1.3W, 0.7W
  • 25V Taps: 5W, 2.5W, 1.3W, 0.7W
  • Transformer Insertion Loss: 1.5 dB Maximum
  • Transformer Connection: Bare wire
  • Motor Mass: 200 g (7 oz)
  • Safety Agency: Suitable for use in air handling spacesper UL1480, UL2043, NFPA 90 & NFPA 70, when installed with correspondingUL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer ULregistered per UL1876. In accordance with IEC60849/EN60849.
  • Matching CSS Backcan: CSS-BB8 (0.15 cu ft)
  • Other Compatible Backcans:
    • MTC-81BB8 (0.26 cu ft)
    • MTC-200BB6 (0.5 cu ft)
    • MTC-300BB8 (1.0 cu ft)
  • Bolt Mounting Circle to Backcan: 4 points on 286 mm(11.25 in) diameter
  • Cutout Diameter Open-Back: 216 mm (8.5 in)
  • In CSS-BB backcan: 295 mm (11.7 in)
  • Depth (behind grille): 71 mm (2.8 in)
  • Grille Diameter: 327 mm (12.9 in)
  • Net Weight (ea): 1.27 kg (2.8 lb)
  • Shipping Weight (ea): 1.94 kg (4.3 lb)
  • Included Accessories: 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
