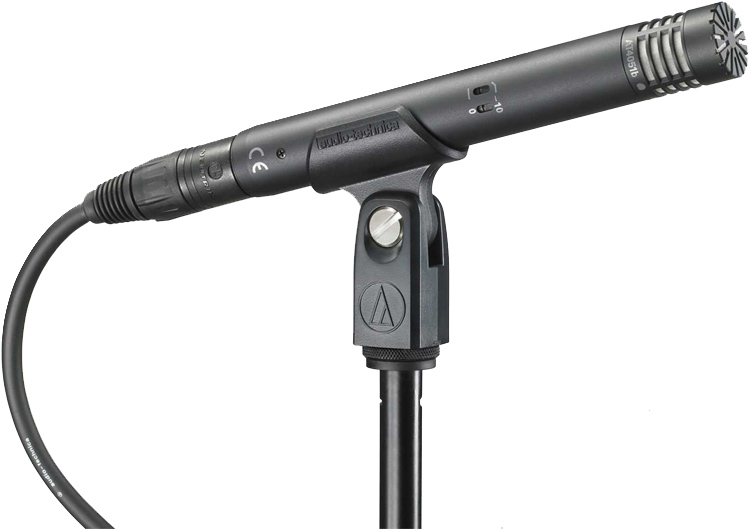

Audio-Technica AT4051b Small-Diaphragm Cardioid Condenser Microphone

The AT4051b cardioid condenser microphone is a versatile studio performer you can employ with confidence in a wide range of professional miking applications. Ideal for professional recording as well as critical audio capture applications in broadcast, it includes direct-coupled balanced outputs, providing clean signals in high-output situations, and is totally free of the distortion associated with conventional transformer-coupled outputs. Its fast transient response contributes to its open, transparent reproduction of even the most difficult-to-capture instruments. It's fully RoHS-compliant – free from all substances that are specified in the EU directive on the reduction of hazardous substances (RoHS).

Features

• Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement
• High front-to-back rejection ratio - cardioid polar pattern improves isolation of desired sound source
• Direct-coupled, balanced output results in a clean signal even under high-output conditions
• Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
• Switchable 80Hz hi-pass filter and 10dB pad
• Rugged turned-brass microphone housing for enduring dependability
• State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
• RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

Specifications

• Element: Externally-polarized (DC bias) capacitor
• Polar Pattern: Cardioid
• Frequency Response: 20 - 20,000Hz
• Low Frequency Roll-Off: 80Hz, 12dB/octave
• Open Circuit Sensitivity: -34dB (19.9mV) re 1V @ 1Pa
• Impedance: 50Ω
• Maximum Input Sound Level:
  • 145dB SPL, 1kHz @ 1% T.H.D.
  • 155dB SPL, with 10dB pad (nominal)
• Noise: 16dB SPL
• Dynamic Range (typical): 129dB, 1kHz @ Max SPL
• Signal-to-Noise Ratio: 78dB, 1kHz @ 1Pa
• Phantom Power Requirements: 48VDC, 4.8mA typical
• Switch: Flat, roll-off, 10dB pad (nominal)
• Weight: 4.4oz. (126g)
• Dimensions (L x max. body diameter): 6.10" x 0.83" (155 x 21mm)
• Output Connector: Integral 3-pin XLRM-type
• Optional Interchangeable Elements (sold separately):
  • AT4049b-EL (omnidirectional)
  • AT4053b-EL (hypercardioid)
