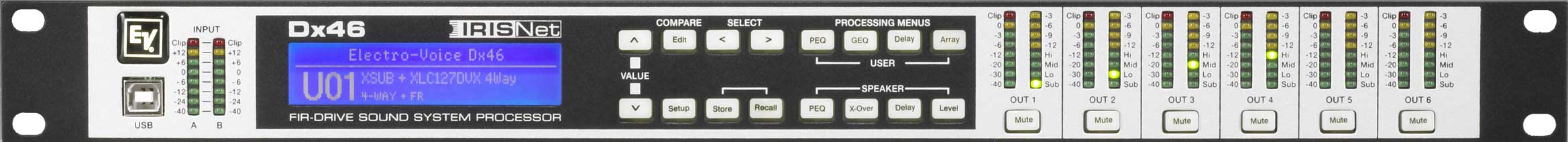

Electro-Voice DX46
Speaker Processor, FIR-Drive, 2 x 6

OUR PART #:  DX46

The Dx46 brings the same technology found in NetMax and RCM-26 equipped Tour Grade amplifiers to a new...
Learn More
Our Price: $1,849.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice DX46
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Dx46 brings the same technology found in NetMax and RCM-26 equipped Tour Grade amplifiers to a new, compact and easy to use form factor by providing six channels of FIR-Drive processing in addition to EV's state of the loudspeaker protection. The Dx46 provides a USB and an Ethernet interface with an integrated switch for connectivity. IRIS-Net allows complete control, configuration, and supervision through standard or customized interfaces; IRIS-Net allows the ultimate in flexibility for controlling what you want to control - how you want to control it.

Features

  • Designed for Cinema, Club Sound, Concert Sound, House of Worship, Performance & Sports Venues, Pro Music, Stadium Systems, and other applications
  • 2x6 FIR-Drive Loudspeaker Processor
  • Analog and AES/EBU inputs
  • Full IRIS-Net control and configuration
  • Ethernet and USB data interfaces
  • Full loudspeaker protection package, including PA limiters and TEMP limiters
  • Dedicated array EQ and delay sections for advanced applications
  • -6dB switchable analog pad inserted before A/D converters on inputs
  • 4 separate delay sections
  • 5 contact closure inputs
  • 60 factory presets
  • 30 user presets
  • Unique edit/compare mode for audible parameter adjustment

Specifications

  • A/D Conversion: 24-bit Delta Sigma
  • Analog Inputs: 2
  • Analog Outputs: 6
  • Control Protocol: USB, Ethernet
  • D/A Conversion: 24-bit Delta Sigma
  • Data Format: 24-bit
  • Digital Inputs: 1 XLR AES/EBU (2Ch)
  • Dynamic Range: 116 dB (A-weighted)
  • Frequency Response: 20Hz-40kHz
  • Input Impedance (Balanced): 10k ohms
  • Internal Processing: 48-bit double precision
  • Maximum Input Voltage: 8.7V/+21 dBu (without -6dB analog pad engaged)
  • Maximum Output Voltage: 8.7V/+21 dBu
  • Nominal Input Voltage: 1.55V/+6 dBu
  • Nominal Output Voltage: 1.55V/+6 dBu
  • Output Impedance (Balanced): 50 ohms
  • Sample Rate: 48 kHz
  • THD+N: <0,002% (band limited 20Hz to 20kHz)
  • Dimensions (H x W x D): 1.74" x 7.19" x 14", 1RU
  • Net Weight: 10.14 lbs
