TeachLogic DR-702D
96 channel receiver with delay for use with Airlink system

OUR PART #:  DR-702D

Whether the need is to get an audio signal to an overflow crowd at a special event or send the announcer’s voice across the football stadium...
Learn More
Our Price: $395.00
List Price: $629.00
You save 37%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


TeachLogic DR-702D
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

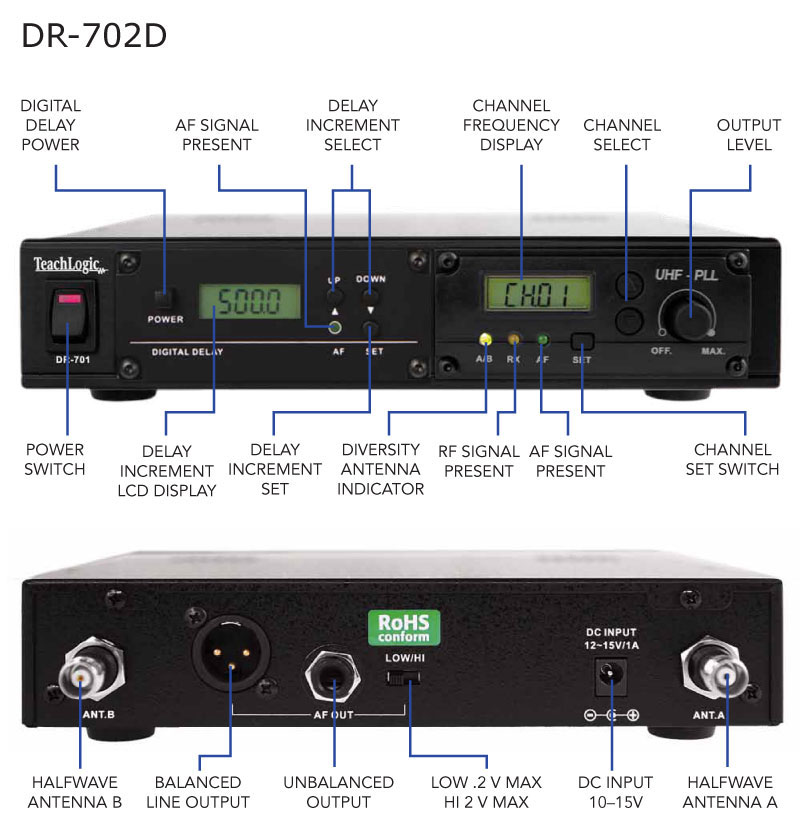

Whether the need is to get an audio signal to an overflow crowd at a special event or send the announcer’s voice across the football stadium, AirLink can get the message across with ease by the use of RF transmission. Tests have been performed through multi-story buildings from lobby to upper conference room, from press box to cross-field component sound systems and various concession booths, or from outdoor program stage to distant Titans with UHF receivers. Transmission distance in excess of 500 feet has been achieved in direct line of sight with absolute clarity and rock solid connectivity. The DR-702D features a digital time delay module which allows the user to synchronize distant audio speakers with the program audio location. The delay module can delay the output signal of the receiver from 20–500 milliseconds. The LCD displays the delay time in milliseconds.


  • Diversity receiver for more reliable reception
  • Two half-wave antennas for enhanced reception
  • Balanced line level output, 1/4" phone
  • Selectable 96 channel (640-664 MHz)
  • LCD for channel # or frequency display
  • Volume/Gain control

Digital Delay Features

  • Variable from 20-500ms
  • Steps in 0.1ms incriments
  • LCD for delay time display
  • Convienient install, plug-in edge connector
