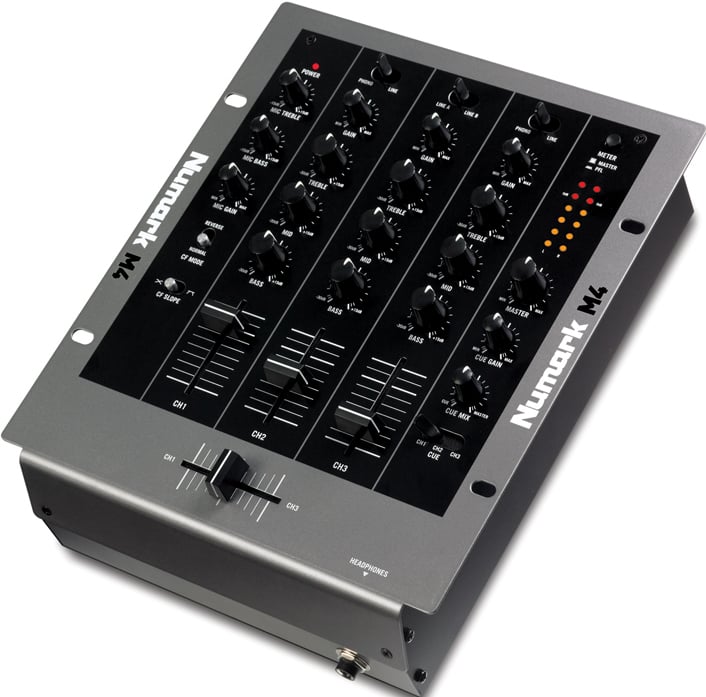

Numark M4-NUMARK 3-Channel Scratch Mixer (with 2 Phono/Line Inputs)

Numark's M4 is a 3-channel tabletop mixer that features a replaceable crossfader with reverse and slope controls, a 1/4" microphone input with EQ, and plenty of routing for phono and line level devices.

2 switchable phono/line inputs plus 4 more dedicated line inputs give you a total of 6 inputs. Also features Master and Record outputs, and steep three-band EQ/rotary kills on each channel.

Additional Features:

• Inputs: two phono/line switchable (RCA), four line (RCA), mic (1/4")
• Outputs: Master (RCA), Record (RCA), headphone (1/4" stereo)
• Microphone input with EQ
• Six-segment LED display for monitoring signal strength
• Toggle for master and PFL metering
• Replaceable crossfader with reverse and slope controls

Specifications:

• Line Inputs: 10K ohm input impedance; 80mV RMS sensitivity for 0dB output
• Mic Inputs: 600 ohm input impedance unbalanced; 1.5mV RMS sensitivity for 0dB output; 400mV RMS max input
• Phono Inputs: 47k ohm input impedance; 1.3mV RMS sensitivity @ 1kHz for 0dB output
• Line Outputs: 7V RMS max
• Headphone Output: 0.5W into 47ohm
• Signal to Noise Ratio (maximum output JIS-A weighted):
  • - Line: Better than 100dB
  • - Mic: Better than 95dB
  • - Phono: Better than 85dB
• Distortion: Less than 0.05%
• Frequency response:
  • - Line: 20 – 20,000 Hz ±0.5dB
  • - Mic: 20 – 15,000 Hz ±0.5dB
  • - Phono: ±1dB; -3dB attenuation at 20 Hz to reduce rumble and feedback
• Channel Equalizer:
  • - Bass: +12 / -35dB at 20 Hz
  • - Mid: +12 / -25dB at 1.3 kHz
  • - Treble: +12 / -20dB at 15 kHz
• Channel fader kill: Better than 90dB at 1 kHz
• Crossfader kill: Better than 75dB
• Crosstalk: Better than 80dB at 1 kHz
