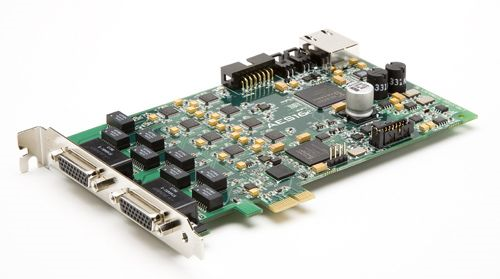

Lynx Studio Technology AES16e-50
PCI Express Card with AES/EBU and AES50 I/O

OUR PART #:  AES16-E-50

The AES16e-50 offers 16 channels of 192 kHz AES/EBU I/O with up to 32 additional digital inputs/outputs via AES50 technology and 16 ADAT channels via the card’s LStream port.
Learn More
Our Price: $899.00
List Price: $995.00
You save 10%!
Write the first review.
Lynx Studio Technology AES16e-50
In Stock

Related Products

The AES16e-50 offers 16 channels of 192 kHz AES/EBU I/O with up to 32 additional digital inputs/outputs via AES50 technology and 16 ADAT channels via the card’s LStream port. AES50 multi-channel I/O in conjunction with Lynx’s exclusive SynchroLock™ sample clock technology provide a practical solution where cable runs up to 100 meters are required for permanent installation, portable live sound and multiroom recording and production facilities.

Several products already employ AES50 technology. More than 10,000 AES50 channels are in use around the world on Midas XL8 and PRO6 digital consoles and Klark Teknik DN9696 audio recorders.

The AES16e-50’s new Uber Mixer provides a total of 80 input channels that can be routed to any of the 32 record streams or monitor outputs. Each of the 32 outputs allows mixing of 32 recording monitor sources and 32 playback streams for true 64 x 32 mixing. These extensive routing capabilities are well-suited for patchbay functionality and format conversion between AES/ EBU, AES50 and ADAT.

The AES16e product line builds on the capabilities of our industry-standard AES16 with an updated feature set and the benefits of the PCI Express interface. The architecture and higher bandwidth of PCI Express reduces bottlenecks and overhead, which provides higher performance for computer-based high end audio. The AES16e-50 x1 PCI Express card is compatible with Windows and Macintosh operating systems..


  • x1 PCI Express interface works with Macintosh or Windows PCs with PCIExpress slots (x1 - x16).
  • Eight stereo inputs and eight stereo outputs (16 mono I/O), AES/EBUformat, 24-bit, single wire and dual wire, transformer coupled.
  • 48 I/O channels available via AES50 Port. Recording and playback on 32channels at 44.1/48 kHz, 24 channels at 88.2/96
    kHz, and 12 channels at176.4/192 kHz using standard CAT5e or CAT6 cable.
  • Additional 16 ADAT I/O channels available with optional LS-ADAT daughtercard.
  • Uber Mixer provides industry-leading processing power (220 MIPS*) tosupport mixing of 32 inputs and 32 playback channels
    for each of the 32outputs.
  • Sixteen channels of sample rate conversion on AES/EBU inputs. Support forconversion ratios up to 16:1 with 144 dB
    dynamic range and -140dB THD+N.
  • All relevant settings, such as sample rate selection, sync sourceselection, routing and mixing, and buffer size are controlled and monitoredfrom the host computer.
  • Multi-channel support of 5.1 and 7.1 surround playback formats.
  • Includes Lynx exclusive SynchroLock™ sample clock generator for 3000:1jitter rejection on external clock sources.
  • Supports ASIO and WDM for Windows and CoreAudio for Mac OS X.
  • Easy driver installation for Windows, Mac OS X.
