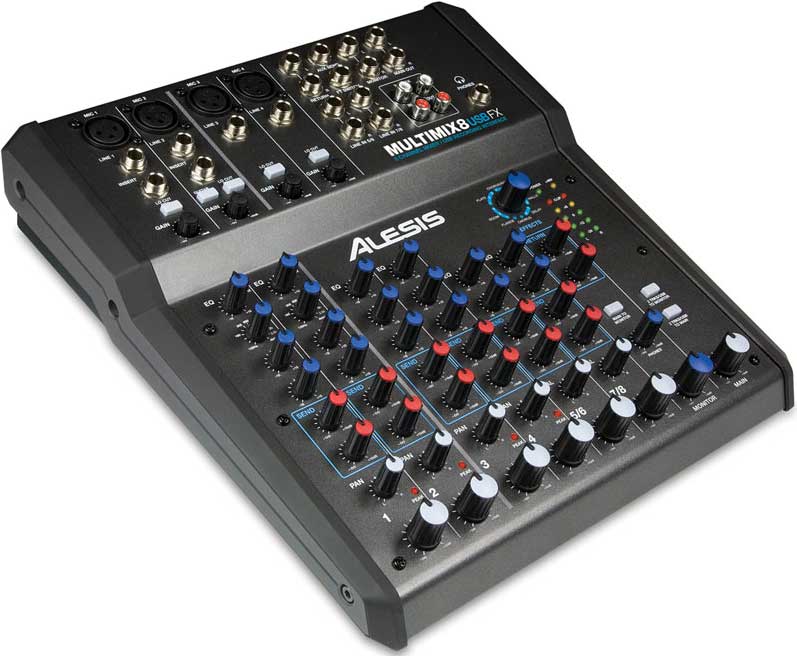

Alesis MultiMix 8 USB FX 8-Channel Mixer with USB and DSP Effects

OUR PART #: MULTIMIX-8USB-FX MFR #: MM8USBFXPTOOLSXUS

Copied to clipboard

The Alesis MultiMix 8 USB FX is a compact mixer with built-in effects that doubles as a computer recording interface allowing you to mix, record, or do both at the same time. ...Read more

Alesis MultiMix 8 USB FX 8-Channel Mixer With USB And DSP Effects Image 1
Alesis MultiMix 8 USB FX 8-Channel Mixer With USB And DSP Effects Image 2
7mVOyvZP0-4
1 Video
Alesis MultiMix 8 USB FX 8-Channel Mixer With USB And DSP Effects
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Alesis MultiMix 8 USB FX is a compact mixer with built-in effects that doubles as a computer recording interface allowing you to mix, record, or do both at the same time. Whether you are mixing a band or sub-mixing a group of inputs such as a drumset, the MultiMix 8 USB FX is easy to use. Offering microphone inputs with phantom power, guitar-direct inputs, line-level inputs and a wide range of effects, the MultiMix 8 USB FX delivers clean audio to your PA or recording system while providing hassle-free computer connection.

The MultiMix 8 USB FX features four XLR inputs with phantom power and independent gain pots on channels one through four to accommodate both dynamic and condenser microphones. TRS Line inputs are also available on all eight channels and a high-impedance input on channel two, which allows direct connection of a guitar or bass - great for those looking to get a clean, "hot" signal. An RCA stereo input is also included adding the ability to mix in audio from other sources such as a CD or LP player.

The MultiMix 8 USB FX includes an internal effects processor to quickly and easily add new colors to your mix with reverb, delay or phase. with auxiliary outputs and stereo returns, as well as Insert jacks on channels one and two, the Multimix 8 plays well with your current compressors, limiters and effect units. This compact mixer comes loaded an impressive amount of routing options for all your needs.

The MultiMix 8 USB FX contains a complete USB recording interface so you can it into your Mac or PC without installing any software drivers, and enjoy a digital-direct stereo connection with virtually any audio software application. The MultiMix 8 USB FX enables bidirectional stereo signal, so the stereo Main output can be recorded into your computer, then listen back using the mixer as an interface.

Includes

  • MultiMix 8 USB FX mixer
  • USB cable
  • Power supply
  • Software CD
  • Quick start guide

Features

  • Eight-channel mixer with mic, line, and guitar-level inputs
  • 16-bit, 44.1/48 kHz stereo USB output for easy recording and playback from your computer
  • XLR inputs with gain trim, switchable high-pass filters, and 48V phantom power
  • Works with iPad via Apple USB Adaptor (sold separately).
  • 1/4-inch line-level inputs for instruments and high-impedance guitar input for direct-connecting guitars
  • Powerful EQ: three-band with sweepable parametric mids on channels 1 and 2, three-band on 3 and 4, two-band on 5 – 8
  • Built-in DSP effects with footswitch bypass control and Aux buss for external processing
  • Main and headphone outputs with independent level controls
  • Class compliant, plug-and-play USB for Mac and PC interface without installing drivers
  • Includes Cubase LE software

Specifications

  • Front-panel
    • 8 mic/line channels
    • 2 stereo channels with trim
    • 2-band EQ (high shelving at 12kHz, low shelving at 80Hz)
    • Aux send 1 (pre-fader)
    • Aux send 2 (post-fader)
    • pan/balance
    • 60mm stereo master fader
    • Stereo aux return level
    • Headphone jack with level and master/tape switch
    • Stereo 10-segment LED meters
    • Power and phantom power LEDs
  • Connections
    • All 1/4" TRS except as noted
    • Mic in x 8 (XLR)
    • Line in x 12
    • Channel insert x 8
    • Aux send x 2
    • Stereo aux return
    • Stereo main out
    • Stereo monitor out
    • Headphone out
    • Stereo tape in and master out (RCA)
  • Power: 120V AC internal transformer
  • Dimensions: (H x W x D): 5.25" x 19" x 6.25" (134mm x 483mm x 158mm), 3U rackmount
  • Weight: 8lbs (3.6kg
