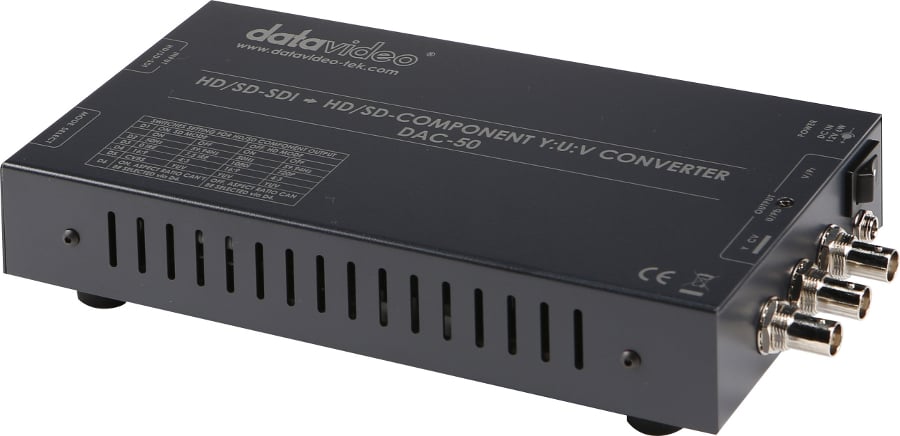

Datavideo Corporation DAC-50
SDI to Analog Converter

OUR PART #:  DAC-50

Datavideo’s DAC-50 is a HD/SD-SDI to Y:U:V Component & Composite Video signal converter with built in up/down scaling.
Learn More
Sale Price: $333.56
List Price: $550.00
You save 39%!
Be the first to review.
Datavideo Corporation DAC-50
Qty:
In Stock
Similar Products

Datavideo’s DAC-50 is a HD/SD-SDI to Y:U:V Component & Composite Video signal converter with built in up/down scaling. The built in scaler allows users to convert from a HD-SDI (1080i & 720p) or SD-SDI signals to HD (1080i & 720p) or SD (480i/50i) Y:U:V Component or Composite Video signal. The DAC-50 can also cross convert from 1080i to 720p.

The DAC-50 has a rugged metal enclosure that is perfect for use in even the roughest conditions.

Features:

  • Cross convert from 1080i to 720p.
  • Built-In Scaler: Convert a HD-SDI (1080i / 720p) or SD-SDI signal to a HD(1080i / 720p) or SD (480i 50i) Y:U:V Component or Composite signal.

Specifications:

  • Connections
      -  Inputs: HD-SDI /SD-SDI
      -  Outputs: Y:U:V Component / CompositeVideo
  • HD/SD-SDI Input Resolutions
      -  720×480Interlace
      -  720×576 Interlace
     -  1280×720 / 59.94Hz Progressive
      -  1280×720 /50Hz Progressive
      -  1920×1080 / 59.94HzInterlace
      -  1920×1080 / 50Hz Interlace
  • HD/SD-SDI YUV Output Resolutions
      -  720×480Interlace
      -  720×576 Interlace
     -  1280×720 / 59.94Hz Progressive
      -  1280×720 /50Hz Progressive
      -  1920×1080 / 59.94HzInterlace
      -  1920×1080 / 50Hz Interlace
  • Dimensions:
      -  Length: 10.75 in. / 280 mm
     -  Width: 4.5 in. / 120 mm
      -  Height: 2 in. / 50mm
      -  Weight: 1.5 lbs / 0.9 kg

What's Included:

  • DAC-50 Unit
  • Instruction manual
  • 12V 0.5A 6W DC 110/220 power supply
