West Penn AQC357GY1000 1000' 22AWG 4-Conductor Stranded Aquaseal Audio Cable

OUR PART #: AQC357 MFR #: AQC357GY1000

Copied to clipboard

The AQC357GY1000 from West Penn is a 1000ft length of 22 gauge, 4-conductor Aquaseal cable that is suitable for outdoor use and indoor trays in intercom, security... ...Read more

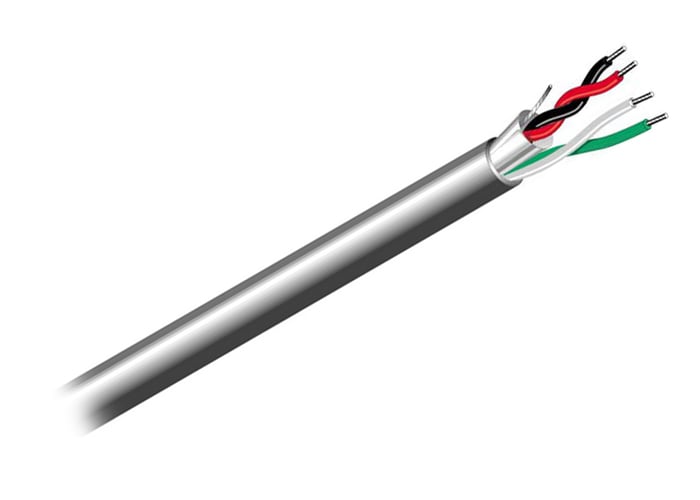

West Penn AQC357GY1000 1000' 22AWG 4-Conductor Stranded Aquaseal Audio Cable Image 1
West Penn AQC357GY1000 1000' 22AWG 4-Conductor Stranded Aquaseal Audio Cable
Our Price: $289.81
List Price: $297.40

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$9/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The AQC357GY1000 from West Penn is a 1000ft length of 22 gauge, 4-conductor Aquaseal cable that is suitable for outdoor use and indoor trays in intercom, security, sound, audio and background music applications.

Specifications

  • Conductor: 22AWG Bare Copper
  • Stranding: 7x30
  • Insulation Material: PVC
  • Insulation Thickness: 0.010" nom.
  • Number of Conductors: 4 (2 shielded, 2 unshielded)
  • Shield: 100% Aluminum Polyester Foil
  • Drain: Stranded Tinnned Copper
  • Water-Blocking Tape: Internal and Overall 2-ply Water Swellable Tape
  • Jacket Material: Sunlight/Moisture Resistance PVC
  • Jacket Thickness: 0.025" Nom.
  • Approximate Cable Weight: 30 lbs./1,000' Nom.
  • Flame Rating: UL 1685 Vertical Tray
  • Electrical and Environmental Properties
    • Temperature Rating: -4 ºF - 140 ºF
    • Operating Voltage: 300 V RMS
    • Max Capacitance Between Conductors @ 1 kHz: 54pf/ft Nom.
    • Capacitance Between Conductors to Shield @ 1 kHz: 97pf/ft Nom.
    • DC Resistance per Conductor @ 68 ºF: 17.5 Ω/ 1,000' Nom.
    • Insulation Colors: Shielded - Black, Red / Unshielded: White, Green
    • Jacket Color: Gray
    • TIA455-82B Water Infiltration Test Compliant: Yes
    • UL 444 & 13 Compliant: Yes
