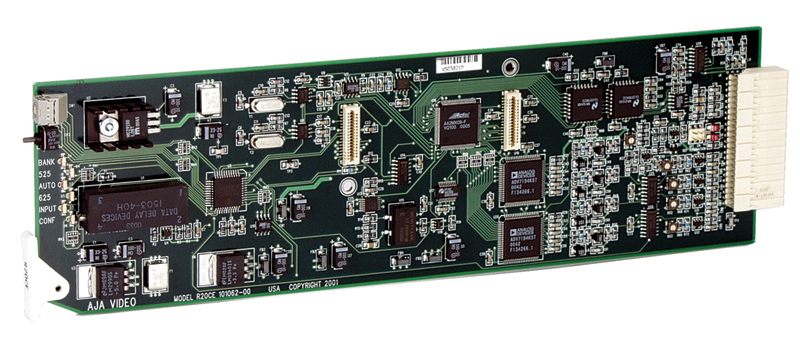

AJA Video Systems Inc R20CE-F
D/A Converter, 10-bit, SDI to Simultaneous Component/Composite, YPbPr, RGB, NTSC, with FSG Frame Sync/Genlock Module

OUR PART #:  R20CE-F

The R20CE SDI to Analog Video Converter provides excellent quality 10-bit conversion of SDI to component and composite video formats simultaneously.
Learn More
Our Price: $1,130.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc R20CE-F
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The R20CE SDI to Analog Video Converter provides excellent quality 10-bit conversion of SDI to component and composite video formats simultaneously. The 4 analog outputs are user configurable to NTSC/PAL, YC (S-Video), YPbPr (SMPTE, EBU-N10), Betacam, or RGB. The component and composite outputs are completely independent including optimum chroma filtering for each and independent pedestal configuration. The R20CE also features an exclusive PLL jitter filter/memory to reduce the effects of SDI jitter on the output analog video. This feature, along with the precision 4x oversampled D/A filter, provides the highest quality analog outputs - including very low phase noise in composite outputs. The optional FSG (Frame Sync/Genlock) Module allows genlock to an external reference with full timing adjustment. Without the FSG Module, the reference input provides color frame timing. The R20CE fits the AJA R-Series Rack Mount Frames, as well as other common industry frames.

Features

  • Excellent quality 10-bit universal D/A conversion
  • Full 10-bit data path, 4 x Oversampling
  • SDI Input, 2 re-clocked, loop-thru SDI outputs
  • Simultaneous component & composite analog outputs
  • YPbPr, Betacam, or RGB Component formats
  • NTSC or PAL composite formats
  • Digital Noise Reduction
  • Optional Frame Synchronizer Allows Genlock to Reference, Full Timing Adjustment

Specifications

  • Inputs: SDI (SMPTE 259M), 1 x BNC
  • Reference: Passive Loop
  • Outputs: Simultaneous Component and Composite Output
    YPbPr - SMPTE, EBU-N10, Betacam, RGB, NTSC, PAL, YC (S-Video), 3 x BNC
    NTSC/PAL or Sync, 1 x BNC
    Re-Clocked Loop-Thru SDI, 2 x BNC
  • D/A Converters: 10-bit, 4 x Oversampling
    Clock Jitter Filtering to 2.5Hz
  • Frequency Response
    Y +/-.15dB to 5.5MHz
    C +/-.15dB to 2.5MHz (Component)
    C +/-.15dB to 1.3MHz (Composite)
    Less than .5% K Factor (2T)
  • User Controls
    Output Video Format
    Pedestal On/Off
    Narrow/Wide Blanking
    Digital Noise Reduction
    Output Timing Adj. (w/Frame Sync Option)
  • Size: Fits AJA R-Series Frames
    Compatible with Leitch 6800 Series Frames
  • Power: 7 Watts (8 Watts w/Frame Sync Option)
