AJA Video Systems Inc FiDO-TR
LC Optical Fiber to SD/HD/3G-SDI Transceiver with Power Supply


The AJA FiDO-TR is an LC optical fiber to SD/HD/3G-SDI transceiver that allows for the transport of SDI, HD-SDI...
Learn More
Our Price: $645.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


AJA Video Systems Inc FiDO-TR
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

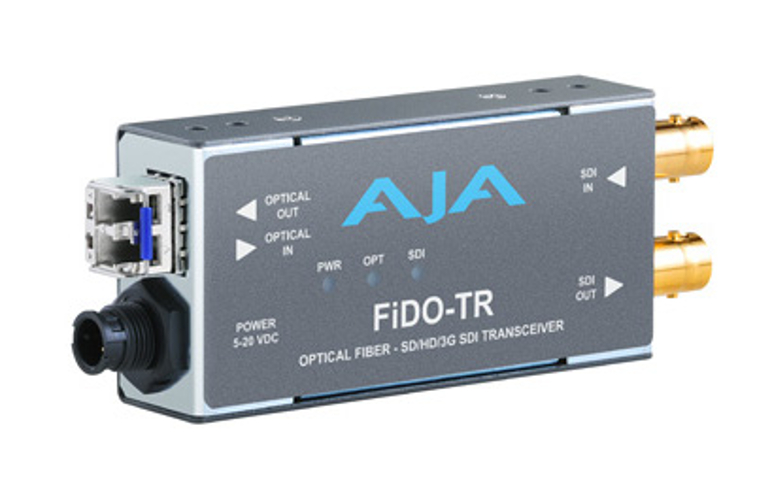

The AJA FiDO-TR is an LC optical fiber to SD/HD/3G-SDI transceiver that allows for the transport of SDI, HD-SDI, and 3G SDI over distances up to 10km using standard single-mode fiber optic cable with LC connectors. The FiDO-TR meets all relevant SMPTE specifications and is rugged, versatile, and suitable for indoor and outdoor use.

AJA FiDO-TR Features:

  • Transport of SDI, HD-SDI, and 3G HD-SDI over single-mode optical fiber
  • Auto-detection of video format
  • All SDI Ancillary data including embedded audio is passed
  • LC fiber connectors
  • All inputs, either SDI or fiber, are equalized and re-clocked
  • ASI compatible
  • Useful for eliminating ground loop problems
  • 5-20VDC power supply (included)
  • 5 year warranty

AJA FiDO-TR Specifications:

  • Formats: 3Gb, 1.5Gb, 270Mb, ASI, Auto Select
  • Video Inputs and Outputs: SDI (SMPTE 259/292/296/424), BNC
  • Cable Equalization (BNC Inputs, 1694 coax)
    • 270Mb: 400m
    • 1.5Gb: 200m
    • 3Gb: 140m
  • Input/Output Return Loss (BNC): >15dB, 270Mb-1.5Gb
  • Optical Outputs
    • Wavelength: 13 10 nm
    • Output Power: -2dBm typical
  • Dimensions: 4.6" x 1.71" x .85"
  • Power:
    • +5-20 VDC
    • 2.5 Watts
