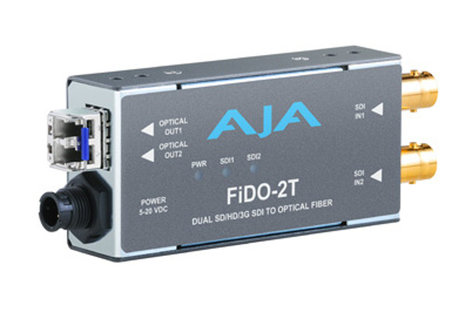

AJA Video Systems Inc FiDO-2T
2 Channel SD/HD/3G-SDI to LC Fiber Converter wth Power Supply


The AJA FiDO-2T SD/HD/3G-SDI to LC Fiber Fiber converters allows for the transport of SDI, HD-SDI...
Learn More
Our Price: $645.00
Write the first review.
AJA Video Systems Inc FiDO-2T
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The AJA FiDO-2T SD/HD/3G-SDI to LC Fiber Fiber converters allows for the transport of SDI, HD-SDI, and 3G SDI over distances up to 10km using standard single-mode fiber optic cable with LC connectors. The FiDO-2T converter meets all relevant SMPTE specifications and is rugged, versatile, and suitable for indoor and outdoor use.

The FiDO-2T allow the conversion of 2 channels - great for 3D, dual-link SDI, or 2 completely independent SDI channels (for example, SD, HD, and 3G can be mixed in any combination). Also, the FiDO-2T converter offers electrical isolation useful for eliminating ground loop problems.

AJA FiDO-2T Features:

  • Transport of SDI, HD-SDI, and 3G HD-SDI over single-mode optical fiber
  • Auto-detection of video format
  • All SDI Ancillary data including embedded audio is passed
  • LC fiber connectors
  • All inputs, either SDI or fiber, are equalized and re-clocked
  • ASI compatible
  • Useful for eliminating ground loop problems
  • 5-20VDC power supply (included)
  • 5 year warranty

AJA FiDO-2T Specifications:

  • Formats: 3Gb, 1.5Gb, 270Mb, ASI, Auto Select
  • Video Inputs and Outputs: SDI (SMPTE 259/292/296/424), BNC
  • Cable Equalization (BNC Inputs, 1694 coax)
    • 270Mb: 400m
    • 1.5Gb: 200m
    • 3Gb: 140m
  • Input/Output Return Loss (BNC): >15dB, 270Mb-1.5Gb
  • Optical Outputs
    • Wavelength: 13 10 nm
    • Output Power: -2dBm typical
  • Dimensions: 4.6" x 1.71" x .85"
  • Power:
    • +5-20 VDC
    • 2.5 Watts
